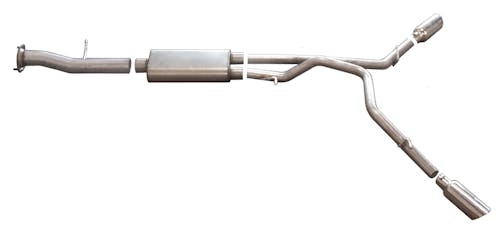

Cat-Back Dual Extreme Exhaust System; Stainless

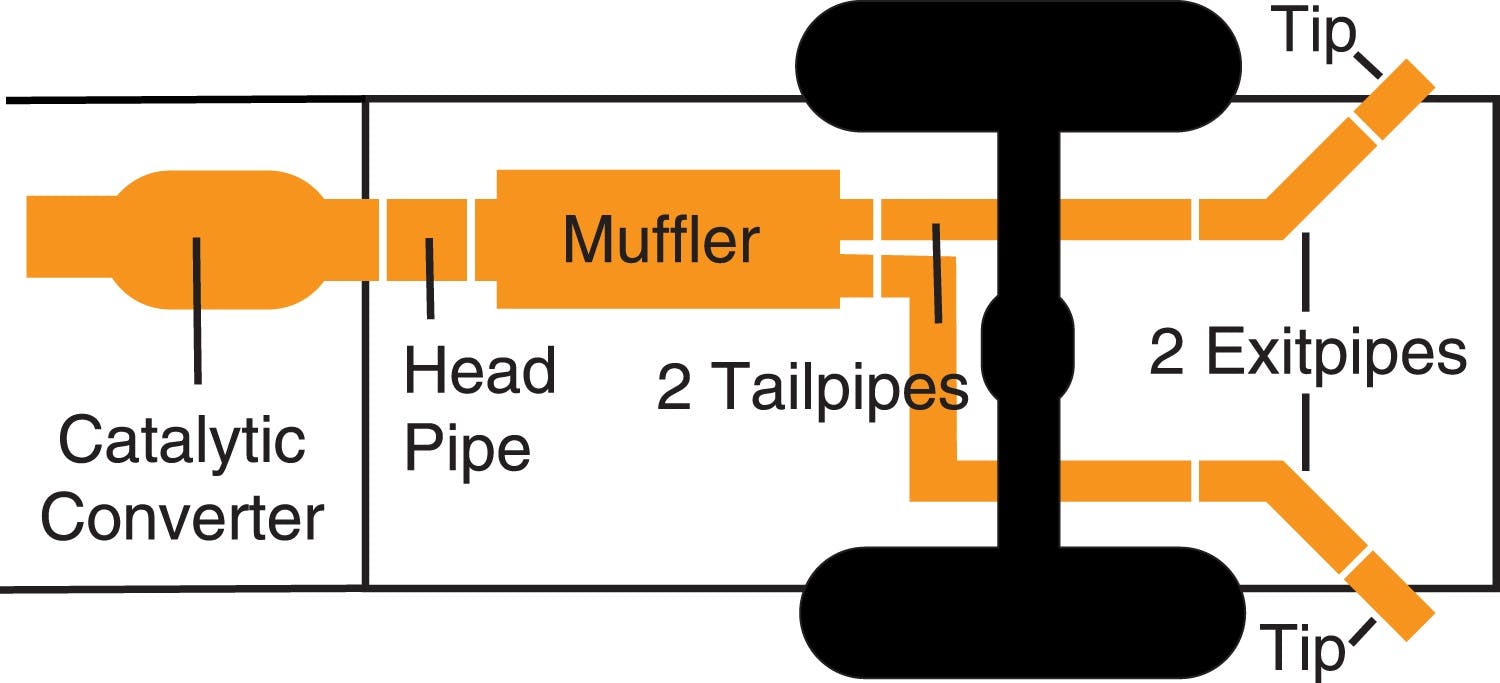

For the extremist who wants to take their Hummer to the next level, this dual bolt-on Cat back system is for you. This system exists behind the rear tires at an aggressive angle with a powerful exhaust tone. You will gain bold street looks with powerful dyno tuned and tested street performance gains. You can expect to experience gains on average of 15-20 horsepower. Gibson muffler provides a mean performance sound and complemented with polished Stainless Tip. Easy bolt-on installation. No welding required. Backed by a Lifetime Limited Warranty. If you want Extreme, this system is it. Backed by a Lifetime Limited Warranty.
- Stainless Mandrel Bent Tubing
- Superflow™ CTF Muffler
- Baffled/Chambered Muffler; No Internal Packing
- Minimum Interior Drone; Aggressive Sound
- Polished Stainless Slash-Cut Clamp On Tip[s]
- Incl. All Hardware/Factory Style Hangers
- Hassle Free Bolt On Installation
- Lifetime Limited Warranty
Information:
409L Stainless Steel Heavy Duty Tubing; Mandrel Bent Tubing; Stainless Steel Superflow™ Muffler; Stainless Steel Clampless Slash Tips; Zinc Plated 3/8 in. to 1/2 in. Hangers/Clamps; Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2009 |
Hummer H2 |
| Attributes |
| Additional Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| EMISSION CARB # |
50 State Legal California Emissions Compliant |
| Emission Code |
Legal US |
| Exhaust Type |
Dual |
| Exit Position |
Rear |
| Exit Position (F05) |
Exits Behind Each Rear Tire. |
| Exit Style |
Straight |
| GTIN |
00677418022957 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
2.250 in. |
| Inlet Inside Diameter (in.) |
2.25 |
| Inlet Size (in.) |
2.25 |
| Life Cycle Status Code |
Available to Order |
| Material |
Stainless Steel |
| Muffler Body Length |
18.000 in. |
| Muffler Body Length (in.) |
18.000 |
| Muffler Dimension |
4 x 9 x 18 in. Oval Body; 2.25 in. Dual Inlet; 3.50 in. Center Outlet. |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet |
Dual |
| Outlet Outside Diameter |
3.500 in. |
| Outlet Outside Diameter (in.) |
3.5 |
| Outlet Size (in.) |
3.5 |
| Product Warranty |
Lifetime Limited Warranty |
| SDR Required Flag |
N |
| System Type |
Cat Back |
| Tail Pipe Diameter |
2.250 in. |
| Tip Description |
4in. Polished T304 Stainless , Round , Slash Cut Tip , Clamp on. |
| Tip Description _3_ 80_c _short description_ (F05) |
4in. Polished T304 Stainless; Round; Slash Cut Tip; Clamp on. |
| Tip Diameter |
3.500 in. |
| Tip Size |
3.5 in. |
| Tip Specification |
Inlet 2.25 in. , Outlet 4 in. , L 12 in. |
| Tip Specifications (F05) |
Inlet 2.25 in.; Outlet 4 in.; L-12 in. |
| Tubing Diameter |
2.250 in. |
| Vehicle Category |
Truck & Suv |
