Cat-Back Dual Split Exhaust System; Aluminized
For the enthusiast who wants an awesome look and aggressive throaty sound this Dual Split Cat back exhaust is for you. Gibson Exhaust Systems decrease backpressure and produce more torque and increased horsepower. Typical gains average of 18-20 horsepower. Stainless dual Tip exit straight out the back. Works with most bumpers, roll pans and trailer hitches. Exhaust sound is louder under towing conditions. Hassle Free bolt- on installation. No welding required.
- Aluminized Mandrel Bent Tubing
- Superflow™ Muffler
- Baffled/Chambered Muffler; No Internal Packing
- Minimal Interior Drone - Aggressive Sound
- Polished Stainless Steel Slash-Cut Tips
- Hassle Free Easy Bolt-On Installation
- Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2014-2018 |
Chevrolet Silverado 1500 |
| 2014-2018 |
GMC Sierra 1500 |
| Attributes |
| Additional Description |

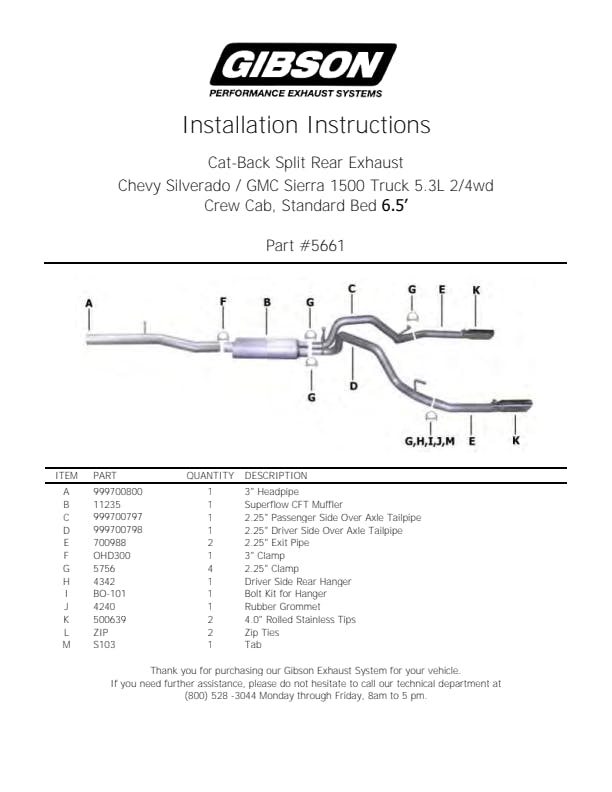

Includes all hardware and factory style hangers for easy bolt on installation. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| EMISSION CARB # |
50 State Legal California Emissions Compliant |
| Emission Code |
Legal US |
| Exhaust Type |
Dual |
| Exit Position |
Dual Split Rear |
| Exit Position (F05) |
Exit Is Straight Out The Back. |
| Exit Style |
Straight |
| GTIN |
00677418026979 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
3/2.25 |
| Inlet Inside Diameter (in.) |
3/2.25 |
| Inlet Size (in.) |
3/2.25 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminized |
| Muffler Body Length |
24.000 in. |
| Muffler Body Length (in.) |
24.000 |
| Muffler Dimension |
8 in. Round Body; 3 in. Offset Intlet;2.25 in. Dual Outlet; ; L-24 in. |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet |
Dual |
| Outlet Outside Diameter |
4.000 in. |
| Outlet Outside Diameter (in.) |
4 |
| Outlet Size (in.) |
4 |
| Product Warranty |
Lifetime Limited Warranty |
| SDR Required Flag |
N |
| System Type |
Cat Back |
| Tail Pipe Diameter |
2.250 in. |
| Tip Description |
4in. Polished T304 Stainless Rolled Slash Cut Tip. Clamp On. |
| Tip Description _3_ 80_c _short description_ (F05) |
4in. Polished T304 Stainless Rolled Slash Cut Tip. Clamp On. |
| Tip Diameter |
4.000 in. |
| Tip Logo |
None |
| Tip Size |
4.0 in. |
| Tip Specification |
Inlet 2.25 in. , Outlet 4.0 in. , L 12 in. |
| Tip Specifications (F05) |
Inlet 2.25 in.; Outlet 4.0 in.; L-12 in. |
| Tubing Diameter |
3.000 in., 3.000 in. |
| Vehicle Category |
Truck & Suv |
