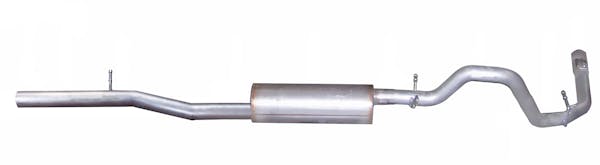

Cat-Back Single Exhaust System; Aluminized
Gibson Single Side Exhaust is perfect for improved acceleration, maximum hill climbing, towing and passing power. This is our best performing Exhaust System. Exits behind the rear tire. Quieter in the cab than any other Performance Exhaust. Dyno test results show it makes maximum torque and horsepower at low-end (1800 to 3000 RPM). Horsepower gains average 18-21 and 20-22lb-ft of increase torque. Hassle free, bolt-on installation with professional looking results. No welding required. Backed by a Lifetime Limited Warranty.
- Aluminized Mandrel Bent Tubing
- Superflow™ Muffler
- Baffled/Chambered Muffler; No Internal Packing
- Minimum Interior Drone; Aggressive Sound
- Polished Stainless Steel Slash-Cut Tip[s]
- Incl. All Hardware/Factory Style Hangers For Easy Bolt-On Install
- Lifetime Limited Warranty
Information:
Aluminized Heavy Duty Tubing; Superflow™ CFT Stainless Performance Muffler; Polished Stainless Steel Intercooled Tip; Zinc Plated Hangers And Clamps; No Welding Or Cutting Required; Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2014-2018 |
Chevrolet Silverado 1500 |
| 2019 |
Chevrolet Silverado 1500 LD |
| 2014-2018 |
GMC Sierra 1500 |
| 2019 |
GMC Sierra 1500 Limited |
| Attributes |
| Additional Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| EMISSION CARB # |
50 State Legal California Emissions Compliant |
| Emission Code |
Legal US |
| Exhaust Type |
Cat-Back |
| Exit Position |
Stock |
| Exit Position (F05) |
Exits In Stock Location. |
| Exit Style |
Straight |
| GTIN |
00677418026757 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
3.500 in. |
| Inlet Inside Diameter (in.) |
3.5 |
| Inlet Size (in.) |
3.5 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminized |
| Muffler Body Length |
24.000 in. |
| Muffler Body Length (in.) |
24.000 |
| Muffler Dimension |
8 x 11 x 24 in. Oval Body; 3.50 in. Offset Inlet; 3.50 in. Offset Outlet. |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet |
Single |
| Outlet Outside Diameter |
3.500 in. |
| Outlet Outside Diameter (in.) |
3.5 |
| Outlet Size (in.) |
3.5 |
| Product Warranty |
Lifetime Limited Warranty |
| SDR Required Flag |
N |
| System Type |
Cat Back |
| Tail Pipe Diameter |
3.500 in. |
| Tip Description |
4in. Polished T304 Stainless Round Rolled Tip. |
| Tip Description _3_ 80_c _short description_ (F05) |
4in. Polished T304 Stainless Round Rolled Tip. |
| Tip Diameter |
4.000 in. |
| Tip Size |
4.0 in. |
| Tip Specification |
Inlet 3.50 in. , Outlet 4.0 in. , L 12 in. |
| Tip Specifications (F05) |
Inlet 3.50 in.; Outlet 4.0 in.; L-12 in. |
| Tubing Diameter |
3.500 in. |
| Vehicle Category |
Truck & Suv |
