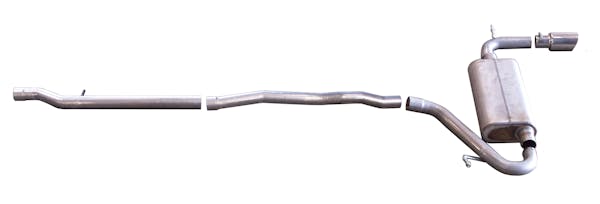

Cat-Back Single Exhaust System; Aluminized
Because Jeep enthusiasts need power from idle to 3000 RPM, Gibson designed their jeep exhaust to enhance low and mid range power for climbing and towing. This single exhaust exits straight out the back, Complemented with polished Stainless Tip. Hassle free, bolt-on installation with professional looking results. Backed by a Lifetime Limited Warranty.
- Aluminized Mandrel Bent Tubing
- Superflow™ Muffler
- Baffled/Chambered Muffler; No Internal Packing
- Minimum Interior Drone; Aggressive Sound
- Polished Stainless Steel Slash-Cut Tip[s]
- Incl. All Hardware/Factory Style Hangers For Easy Bolt-On Install
- Lifetime Limited Warranty
Information:
Aluminized Heavy Duty Tubing; Superflow™ CFT Aluminized Performance Muffler; Polished Stainless Steel Intercooled Tip; Zinc Plated Hangers And Clamps; No Welding Or Cutting Required; Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2007-2013 |
Jeep Patriot |
| Attributes |
| Additional Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| EMISSION CARB # |
50 State Legal California Emissions Compliant |
| Emission Code |
Legal US |
| Exhaust Type |
Single |
| Exit Position |
Single Rear |
| Exit Position (F05) |
Exit Is Straight Out The Back. |
| Exit Style |
Straight |
| GTIN |
00677418018677 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
2.250 in. |
| Inlet Inside Diameter (in.) |
2.25 |
| Inlet Size (in.) |
2.25 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminized |
| Muffler Body Length |
18.000 in. |
| Muffler Body Length (in.) |
18.000 |
| Muffler Dimension |
4 x 9 x 18 in. Oval Body; 2.25. in. Center Inlet; 2.25 in. Offset Outlet. |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet |
Single |
| Outlet Outside Diameter |
3.000 in. |
| Outlet Outside Diameter (in.) |
3 |
| Outlet Size (in.) |
3 |
| Product Warranty |
Lifetime Limited Warranty |
| SDR Required Flag |
N |
| System Type |
Cat Back |
| Tail Pipe Diameter |
2.250 in. |
| Tip Description |
3in. Polished T304 Stainless Round , Slash Cut Tip , Clamp on |
| Tip Description _3_ 80_c _short description_ (F05) |
3in. Polished T304 Stainless Round; Slash- Cut Tip; Clamp on |
| Tip Diameter |
3.000 in. |
| Tip Logo |
None |
| Tip Size |
3 in. |
| Tip Specification |
Inlet 2.25 in. , Outlet 3 in. , L 8 in. |
| Tip Specifications (F05) |
Inlet 2.25 in.; Outlet 3 in.; L-8 in. |
| Tubing Diameter |
2.250 in. |
| Vehicle Category |
Jeep |
