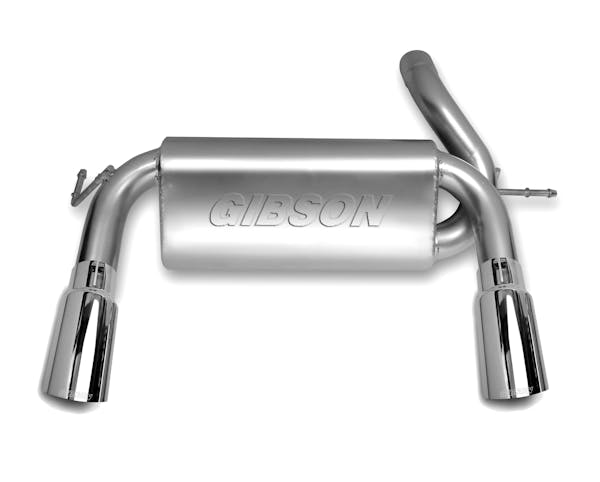

Cat-Back Dual Split Exhaust System; Aluminized
Because Jeep enthusiast need more power from idle to 3,000 RPM, Gibson Designed their Jeep Exhaust to enhance low and mid range performance for climbing and towing. This Split Rear Exhaust exits straight out the back, with Dual Large diameter Stainless Tip. Hassle free, bolt-on installation with professional results. Backed by a Lifetime Limited Warranty.
- Aluminized Mandrel Bent Tubing
- Superflow™ Muffler
- Baffled/Chambered Muffler; No Internal Packing
- Minimum Interior Drone; Aggressive Sound
- Polished Stainless Slash-Cut Tip[s]
- Hassle Free Easy Bolt On Installation
- No Welding Or Cutting Required
- Lifetime Limited Warranty
Information:
Aluminized Heavy Duty Tubing; Mandrel Bent Tubing; Aluminized Superflow™ Muffler; Stainless Steel Clampless Slash Tips; Zinc Plated 3/8 in. to 1/2 in. Hangers/Clamps; Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2007-2017 |
Jeep Wrangler |
| Attributes |
| Additional Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| EMISSION CARB # |
50 State Legal California Emissions Compliant |
| Emission Code |
Legal US |
| Exhaust Type |
Dual |
| Exit Position |
Split Rear |
| Exit Position (F05) |
Exit Is Straight Out The Back. |
| Exit Style |
Straight |
| GTIN |
00677418017526 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
2.500 in. |
| Inlet Inside Diameter (in.) |
2.5 |
| Inlet Size (in.) |
2.5 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminized |
| Muffler Body Length |
18.000 in. |
| Muffler Body Length (in.) |
18.000 |
| Muffler Dimension |
4 x 9 x 18 in Oval Body; 2.50. in. Offset Inlet; 2.50 in Dual Outlet. |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet |
Dual |
| Outlet Outside Diameter |
2.500 in. |
| Outlet Outside Diameter (in.) |
2.5 |
| Outlet Size (in.) |
2.5 |
| Product Warranty |
Lifetime Limited Warranty |
| SDR Required Flag |
N |
| System Type |
Cat Back |
| Tail Pipe Diameter |
2.500 in. |
| Tip Description |
3.50in. Polished T304 Stainless , Round Slash Cut Tip , Clamp on. |
| Tip Description _3_ 80_c _short description_ (F05) |
3.50in. Polished T304 Stainless; Round Slash- Cut Tip; Clamp on. |
| Tip Diameter |
3.500 in. |
| Tip Logo |
None |
| Tip Size |
3.5 in. |
| Tip Specification |
Inlet 2.50in. , Outlet 3.50in. , L 8in. |
| Tip Specifications (F05) |
Inlet 2.50in.; Outlet 3.50in.; L-8in. |
| Tubing Diameter |
2.500 in. |
| Vehicle Category |
Jeep |
