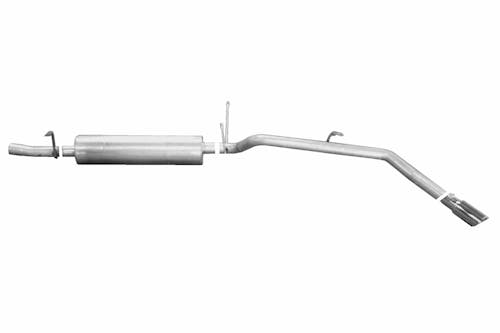

Cat-Back Single Exhaust System; Aluminized
Gibson Single Side Exhaust is perfect for improved acceleration, maximum hill climbing, towing and passing power. This is our best performing Exhaust System. Exits behind the rear tire. Quieter in the cab than any other Performance Exhaust. Dyno test results show it makes maximum torque and horsepower at low-end (1800 to 3000 RPM). Horsepower gains average 10-15 and 15-20lb-ft of increase torque. Hassle free, bolt-on installation with professional looking results. No welding required. Backed by a Lifetime Limited Warranty.
- Aluminized Mandrel Bent Tubing
- Superflow™ Muffler
- Baffled/Chambered Muffler; No Internal Packing
- Minimum Interior Drone; Aggressive Sound
- Polished Stainless Steel Slash-Cut Tip[s]
- Incl. All Hardware/Factory Style Hangers For Easy Bolt-On Install
- Lifetime Limited Warranty
Information:
Aluminized Heavy Duty Tubing; Mandrel Bent Tubing; Aluminized Superflow™ Muffler; Stainless Steel Clampless Slash Tip; Zinc Plated 3/8 in. to 1/2 in. Hangers/Clamps; Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2003-2004 |
Nissan Xterra |
| Attributes |
| Additional Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| EMISSION CARB # |
50 State Legal California Emissions Compliant |
| Emission Code |
Legal US |
| Exhaust Type |
Cat-Back |
| Exit Position |
Driver Side Behind Rear Tire |
| Exit Position (F05) |
Driver Side Exit Behind Rear Tire. |
| Exit Style |
Straight |
| Footnote |
Slip Connection to Converter |
| GTIN |
00677418013054 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
2.250 in. |
| Inlet Inside Diameter (in.) |
2.25 |
| Inlet Size (in.) |
2.25 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminized |
| Muffler Body Length |
24.000 in. |
| Muffler Body Length (in.) |
24.000 |
| Muffler Dimension |
6 in. Round; 2.25 in. Offset Inlet; 2.25in. Offset Outlet; L-24 in. |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet |
Single |
| Outlet Outside Diameter |
2.500 in. |
| Outlet Outside Diameter (in.) |
2.5 |
| Outlet Size (in.) |
2.5 |
| Product Warranty |
Lifetime Limited Warranty |
| SDR Required Flag |
N |
| System Type |
Cat Back |
| Tail Pipe Diameter |
2.250 in. |
| Tip Description |
3in. Polished T304 Stainless Round , Slash Cut Tip , Clamp on |
| Tip Description _3_ 80_c _short description_ (F05) |
3in. Polished T304 Stainless Round; Slash- Cut Tip; Clamp on |
| Tip Diameter |
3.000 in. |
| Tip Logo |
None |
| Tip Size |
3 in. |
| Tip Specification |
Inlet 2.25 in. , Outlet 3 in. , L 8 in. |
| Tip Specifications (F05) |
Inlet 2.25 in.; Outlet 3 in.; L-8 in. |
| Tubing Diameter |
2.250 in. |
| Vehicle Category |
Truck & Suv |
