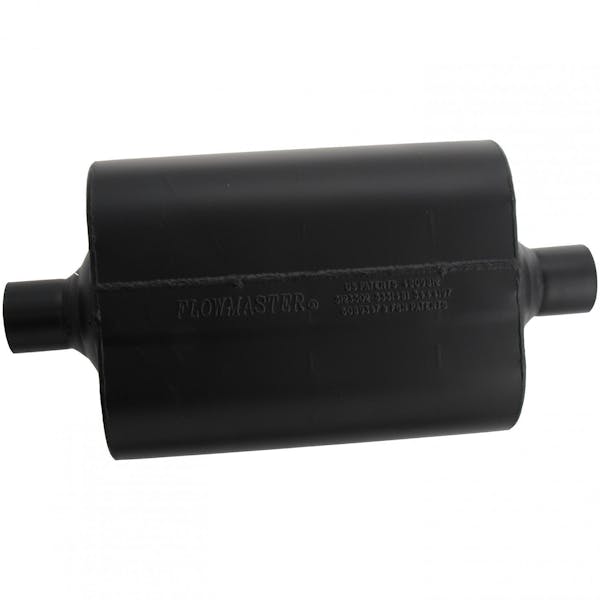

60 Delta Flow® - 2.25 Center In / 2.25 Center Out - Moderate Sound
The 60 series incorporates Flowmaster's Delta Flow® technology to produce a mellow tone, improved power and throttle response on smaller displacement 4 and 6 cylinder vehicles. Generally suited to rear mount installations, use of larger diameter tailpipe/tip will create a deeper tone that is evident both inside and outside the vehicle. Constructed of 16 gauge aluminized steel and fully MIG welded for maximum durability.
- Moderate Sound
- Race proven Delta Flow technology
- Excellent choice for 4&6 cylinder vehicles
- Mild interior resonance
Information:
Universal Muffler - Some adaptation may be required.
Application Summary:
| Year |
Make/Model |
| Universal |
Muffler - Not a direct fit. Some adaptation required. |
| Attributes |
| ASIN |
B0002Z9NTM |
| Automotive Item Grade |
High Performance |
| Body Diameter (in) |
10 |
| Body Height |
5.000 in. |
| Body Height (in) |
5 |
| Body Height (in.) |
5 |
| Body Length |
13.500 in. |
| Body Length (in) |
13.5 |
| Body Length (in.) |
13, 13.5 |
| Body Width |
10.000 in. |
| Body Width (in) |
10 |
| Body Width (in.) |
10 |
| Brand |
Flowmaster |
| Bullet Point #1 |
Moderate Sound |
| Bullet Point #2 |
Mild interior resonance |
| Bullet Point #3 |
Excellent choice for 4&6 cylinder vehicles |
| Bullet Point #4 |
Race proven patented Delta Flow technology |
| California Proposition 65 |
No |
| Category |
Exhaust |
| Color |
Black |
| Country of Origin (Primary) |
CN |
| Emission Code |
5 |
| Fitment |
Universal |
| GTIN |
00700042016372 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Connection Type |
Pipe, Pipe Connection |
| Inlet Diameter |
2.250 in., 2.25 |
| Inlet Diameter (in) |
2.25 |
| Inlet Inside Diameter |
2.250 in. |
| Inlet Inside Diameter (in.) |
2.25 |
| Inlet Outside Diameter |
2.250 in. |
| Inlet Position |
Center |
| Inlet Size (in.) |
2.25 |
| Inlet Type |
Single Center |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2.250 in. |
| Main Piping Diameter (in.) |
2.25 |
| Material |
Aluminized Steel |
| Mount Type |
Uses New Hangers (Not Included) |
| Muffler Count |
1 |
| Muffler Series |
60 Series Delta Flow |
| Muffler Type |
Reflection |
| NAFTA Preference Criterion Code |
B |
| Outlet Connection Type |
Pipe, Pipe Connection |
| Outlet Diameter |
2.500 in., 2.25 |
| Outlet Diameter (in) |
2.25 |
| Outlet Outside Diameter |
2.250 in. |
| Outlet Outside Diameter (in.) |
2.25 |
| Outlet Position |
Center |
| Outlet Size (in.) |
2.25 |
| Outlet Type |
Single Center Outlet |
| Overall Length |
19.000 in. |
| Overall Length (in) |
19 |
| Overall Length (in.) |
19.000 in. |
| Position |
N/A |
| Product Type |
Street Mufflers |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Series |
60 Series Delta Flow Mufflers |
| Shape |
Oval |
| Sound Level |
Moderate, Moderate Sound |
| Sub Category |
Mufflers |
| Subcategory |
Mufflers |
| Type of Muffler |
Chambered |
| Vehicle Type |
4/6 CYL Engine |
| Warranty Time |
36 |
| part type |
Exhaust Muffler |
