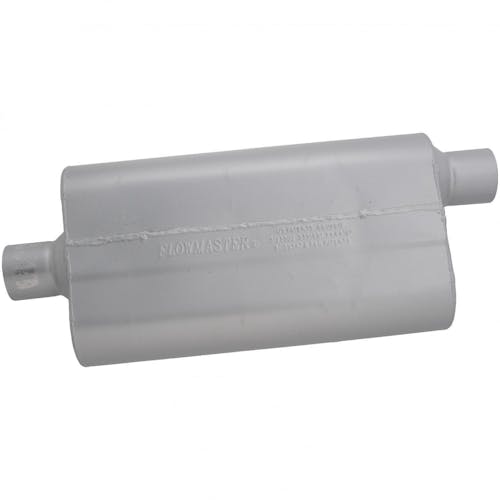

50 Delta Flow® - 2.50 Center In / 2.50 Offset Out - Moderate Sound

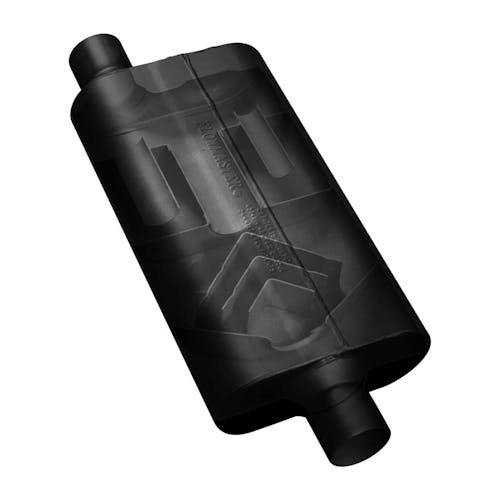

The three chamber design utilizes Flowmaster's Delta Flow® technology along with an internal tuning chamber to reduce sound inside the vehicle. Provides the same performance and exterior tone characteristics as the two chamber, but with less interior resonance. Constructed of 16 gauge aluminized steel and fully MIG welded for maximum durability.
- Mild interior resonance
- Excellent choice for Street Rod cars and trucks
- Improved Horsepower, Torque and Engine Efficiency
- Moderate Sound
Information:
Universal Muffler - Some adaptation may be required.
Application Summary:
| Year |
Make/Model |
| Universal |
Muffler - Not a direct fit. Some adaptation required. |
| Attributes |
| ASIN |
B0002Z9NQU |
| Automotive Item Grade |
High Performance |
| Body Diameter (in) |
2.5 |
| Body Height |
4.000 in. |
| Body Height (in) |
4 |
| Body Height (in.) |
4 |
| Body Length |
17.000 in. |
| Body Length (in) |
17 |
| Body Length (in.) |
17, 17.0 |
| Body Width |
9.750 in. |
| Body Width (in) |
9.75 |
| Body Width (in.) |
9.75 |
| Brand |
Flowmaster |
| Bullet Point #1 |
Moderate Sound |
| Bullet Point #2 |
Mild interior resonance |
| Bullet Point #3 |
Excellent choice for Street Rod cars and trucks |
| Bullet Point #4 |
Improved Horsepower, Torque and Engine Efficiency |
| California Proposition 65 |
No |
| Category |
Exhaust |
| Color |
Black |
| Country of Origin (Primary) |
CN |
| Emission Code |
5 |
| Fitment |
Universal |
| GTIN |
00700042015818 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Connection Type |
Pipe, Pipe Connection |
| Inlet Diameter |
2.500 in., 2.50 |
| Inlet Diameter (in) |
2.5 |
| Inlet Inside Diameter |
2.500 in. |
| Inlet Inside Diameter (in.) |
2.5 |
| Inlet Outside Diameter |
2.500 in. |
| Inlet Position |
Center |
| Inlet Size (in.) |
2.5 |
| Inlet Type |
Single Center |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2.500 in. |
| Main Piping Diameter (in.) |
2.5 |
| Material |
Aluminized Steel |
| Mount Type |
Uses New Hangers (Not Included) |
| Muffler Count |
1 |
| Muffler Series |
50 Series Delta Flow |
| Muffler Type |
Reflection |
| NAFTA Preference Criterion Code |
B |
| Outlet Connection Type |
Pipe, Pipe Connection |
| Outlet Diameter |
2.500 in., 2.50 |
| Outlet Diameter (in) |
2.5 |
| Outlet Outside Diameter |
2.500 in. |
| Outlet Outside Diameter (in.) |
2.5 |
| Outlet Position |
Offset |
| Outlet Size (in.) |
2.5 |
| Outlet Type |
Single Offset Outlet |
| Overall Length |
23.000 in. |
| Overall Length (in) |
23 |
| Overall Length (in.) |
23.000 in. |
| Position |
N/A |
| Product Type |
Street Mufflers |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Sale Category |
Exhaust |
| Series |
50 Series Delta Flow Mufflers |
| Shape |
Oval |
| Sound Level |
Moderate, Moderate Sound |
| Sub Category |
Mufflers |
| Subcategory |
Mufflers |
| Type of Muffler |
Chambered |
| Vehicle Type |
4/6 CYL Engine, Classic Muscle Car |
| Warranty Time |
36 |
| part type |
Exhaust Muffler |
