Fits 1994-1995 GM 1500/2500 LD Trucks with 5.0/5.7-Liter, dual side exit, stainless steel exhaust system
This Flowmaster® FlowFX cat-back exhaust system is for the 1994-1995 GM 1500/2500 LD trucks with the 5.0 and 5.7-liter engines. This system is manufactured using durable 409 stainless steel tubing and is mandrel bent for better exhaust gas flow. A FlowFX Series muffler is used for an improved sound level and maximum performance. This system uses dual 4.5-inch black ceramic coated tips that exit dual out the side of the truck. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. This system fits all single cab and extended cab models in both 2 and 4 wheel drive. Backed by Flowmaster's Lifetime Limited Warranty.

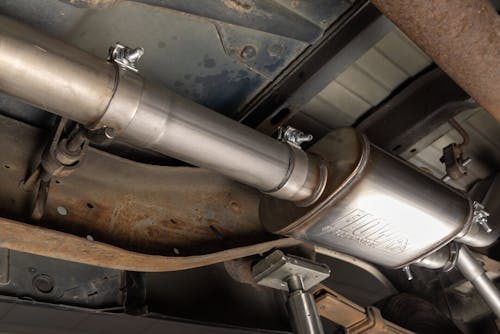

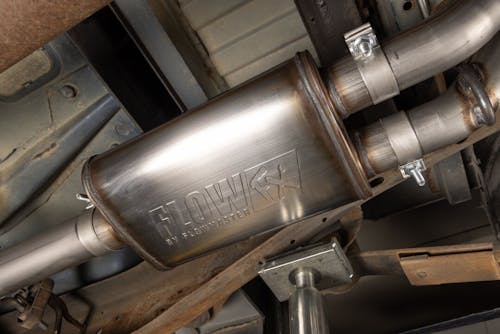

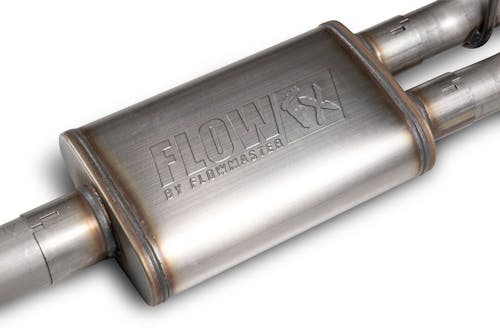

- A FlowFX Series muffler deliver a deep performance tone and improved exhaust flow

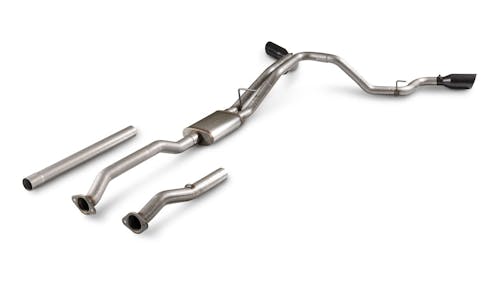

- 3.0-inch and 2.5-inch mandrel bent 16- gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

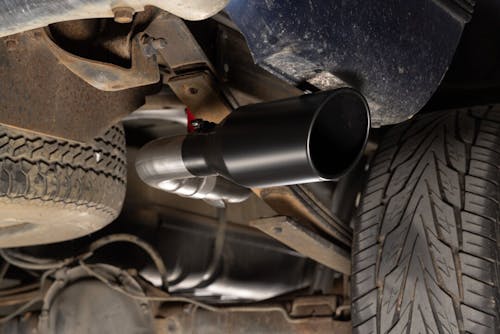

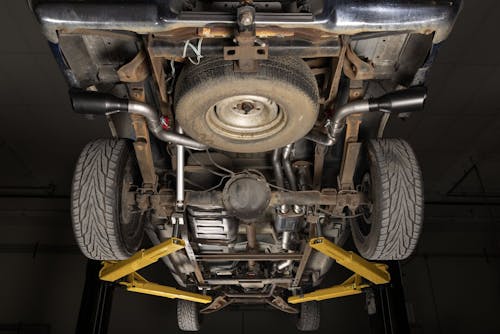

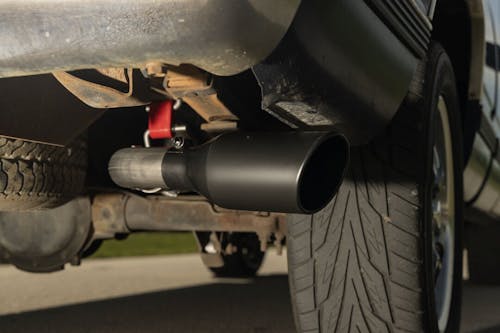

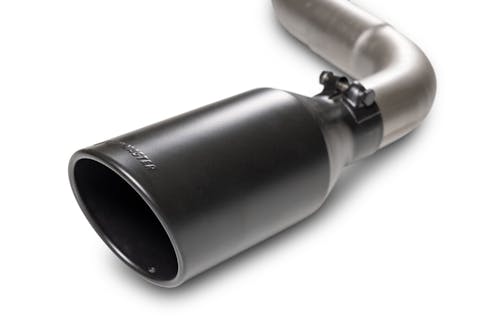

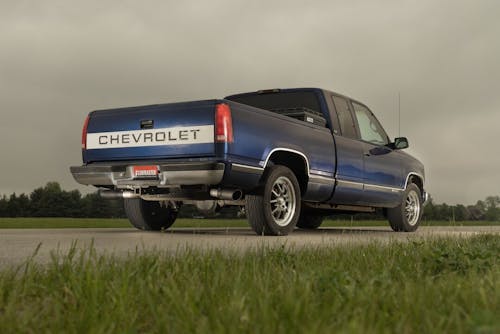

- Dual 4.5-inch black ceramic coated stainless steal tips add a custom look to the vehicle

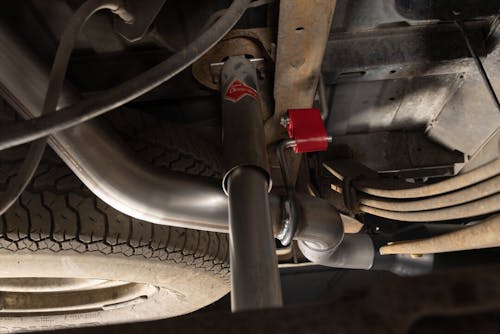

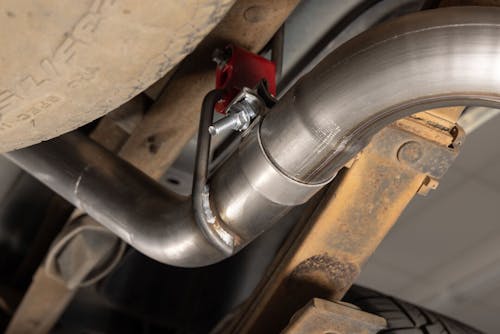

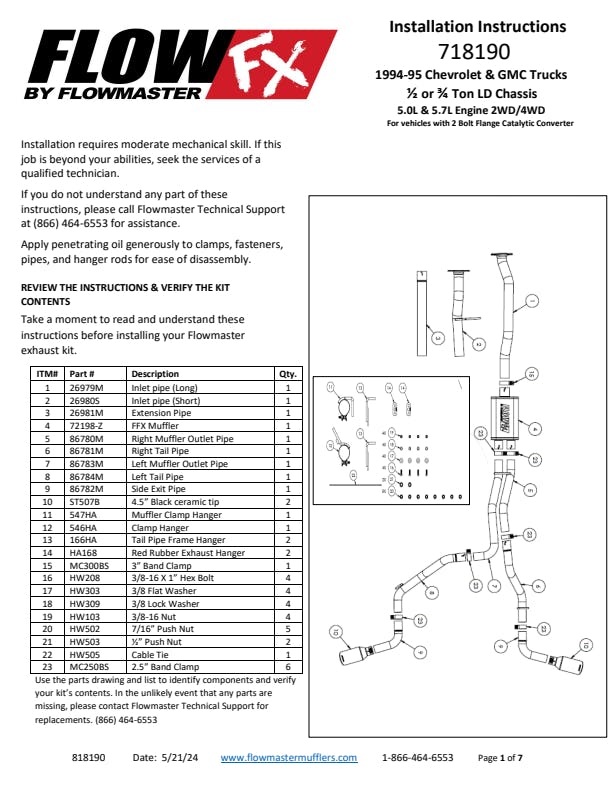

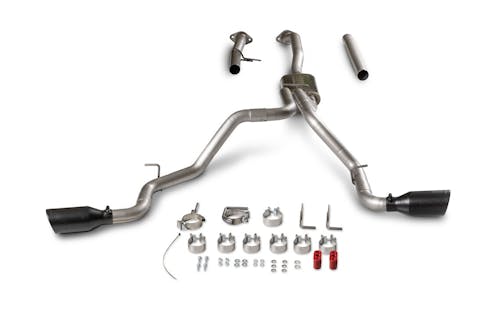

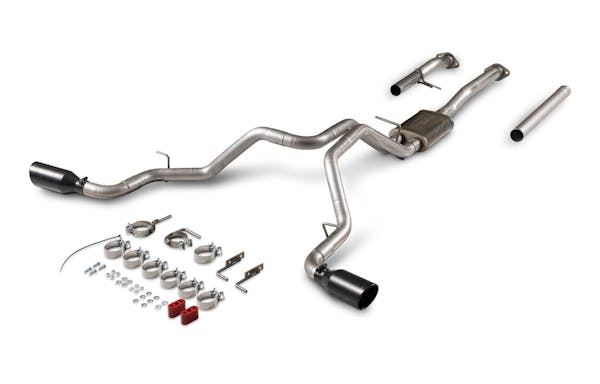

- Kits include complete hardware and factory styled hangers in the stock locations for an easy installation
- Fit all single cab and extended cab models in both 2 and 4 wheel drive
- Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 1994-1995 |
Chevrolet C1500 |
| 1994-1995 |
Chevrolet K1500 |
| 1994-1995 |
GMC C1500 |
| 1994-1995 |
GMC K1500 |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
Yes |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Diameter |
4.50 |
| Exhaust Tip Length |
11.00 |
| Exit Position |
DOS |
| GTIN |
00090127865545 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2-1/2 |
| Material |
409 Stainless Steel |
| Mount Type |
Uses factory hangers |
| Muffler Body Height |
4.00 |
| Muffler Body Width |
9.00 |
| Muffler Color |
Natural, Silver |
| Muffler Inlet Diameter |
3.00 |
| Muffler Inlet Inside Diameter |
3.00 |
| Muffler Inlet Location |
centered, Center |
| Muffler Inlet Outside Diameter |
3.13 |
| Muffler Material |
409 Stainless Steel |
| Muffler Outlet Diameter |
2.50 |
| Muffler Outlet Location |
dual outlet - offset (opposite sides), Dual |
| Muffler Overall Length |
20.00 |
| Muffler Part Number |
Kit Only |
| Muffler Series |
FlowFX |
| Muffler Shape |
Oval |
| Product Type |
Exhaust System |
| SDR Required Flag |
N |
| Single Dual |
Dual |
| Sound Level |
Moderate/Mild |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Outlet Outside Diameter |
2.50 |
| Tip Cut |
Angle |
| Tip Diameter |
4.50 |
| Tip Edge Style |
Rolled |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
11.00 |
| Tip Logo |
Embossed |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Quantity |
2 |
| Tip Style |
Single wall |
| Tubing Diameter |
2.50 |
| Tubing Material |
409 Stainless Steel |
| Warning |
California Proposition 65 |
| part type |
Exhaust System Kit |
