Fits 1996-1999 GM 1500 trucks with 5.7L, Cat-Back, dual out same side exit, stainless steel exhaust system

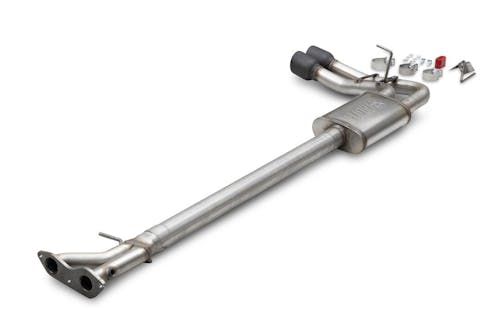

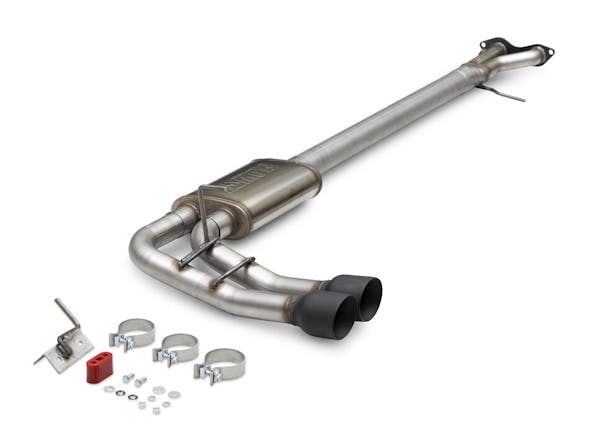

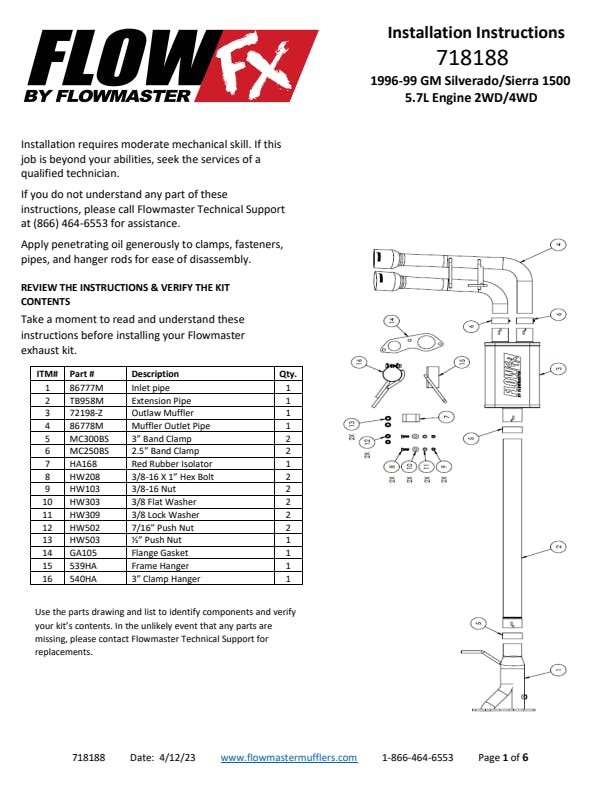

This Flowmaster® FlowFX cat-back exhaust system is for the 1996-1999 GM 1500 trucks with the 5.7-liter engine. This system is manufactured using durable 409 stainless steel tubing and is mandrel bent for better exhaust gas flow. A FlowFX Series muffler is used for an improved sound level and maximum performance. This system uses dual 4.0-inch black ceramic coated tips that exit on the passenger side of the truck, just in front of the rear wheel. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. This system fits all single cab and extended cab models in both 2 and 4 wheel drive. Backed by Flowmaster's Lifetime Limited Warranty.
- · 3.0 and 2.5-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

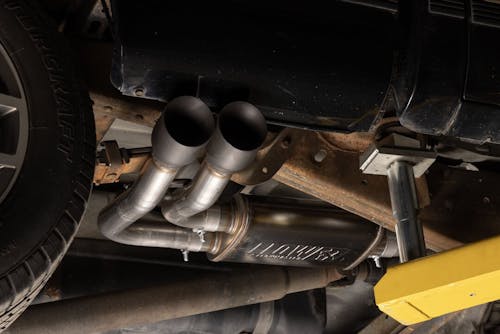

- · This kit exits on the passenger side, just before the rear tire for a unique performance look
- · Dual 4.0-inch black ceramic coated stainless steal tips add a custom look to the vehicle

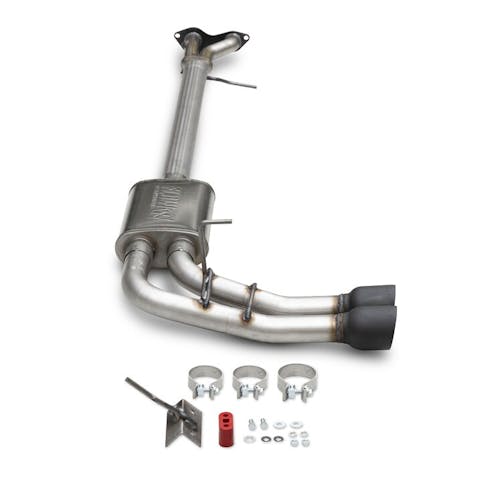

- · Kit includes complete hardware and factory styled hangers in the stock locations for an easy installation

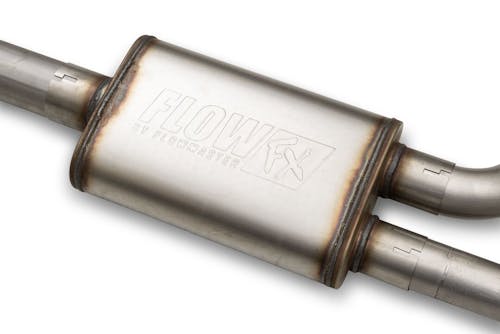

- · A FlowFX Series muffler delivers a deep performance tone and improve exhaust flow
- · Fits all single cab and extended cab models in both 2 and 4 wheel drive
- · Lifetime Limited Warranty
Information:
This exhaust kit is designed to fit 1500 and some 2500LD trucks with both left and right bank catalytic converters on the engine side of the 3-bolt flange of the down pipe. If your C/K 2500 truck has one catalytic converter on the engine side of the 3-bolt flange and one catalytic converter on the muffler side of the 3 bolt flange this kit will not work.
Application Summary:
| Year |
Make/Model |
| 1996-1999 |
Chevrolet C1500 |
| 1996-1999 |
Chevrolet C2500 |
| 1996-1999 |
Chevrolet K1500 |
| 1996-1999 |
Chevrolet K2500 |
| 1996-1999 |
GMC C1500 |
| 1996-1999 |
GMC C2500 |
| 1996-1999 |
GMC K1500 |
| 1996-1999 |
GMC K2500 |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
Yes |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exit Position |
DOSS |
| GTIN |
00090127863381 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2-1/2 |
| Material |
409 Stainless Steel |
| Mount Type |
Uses factory hangers |
| Muffler Color |
Natural, Silver |
| Muffler Inlet Diameter |
3.00 |
| Muffler Inlet Location |
centered, Center |
| Muffler Material |
409 Stainless Steel |
| Muffler Outlet Diameter |
2.50 |
| Muffler Outlet Location |
dual outlet, Dual |
| Muffler Overall Length |
20.00 |
| Muffler Part Number |
Kit Only |
| Muffler Series |
FlowFX |
| Muffler Shape |
Oval |
| Product Type |
Exhaust System |
| SDR Required Flag |
N |
| Single Dual |
Dual |
| Sound Level |
Aggressive / Moderate |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tip Cut |
Angle |
| Tip Diameter |
4.00 |
| Tip Edge Style |
Machined |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
5.25 |
| Tip Logo |
Embossed |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Quantity |
2 |
| Tip Style |
Double wall |
| Tubing Diameter |
2.50 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Warning |
California Proposition 65 |
| part type |
Exhaust System Kit |
