Fits 2022-2025 Toyota Tundra 3.4-Liter, Cat-Back, Single Side Exit, Stainless Steel Exhaust System
This Flowmaster® FlowFX® cat-back exhaust system for the 2022-2025 Toyota Tundra trucks with the 3.4-liter engine is manufactured using durable 409 stainless steel throughout and features dual 2.50-inch dual inlet and 3.00-inch single exit mandrel bent pipes for better exhaust gas flow. A FlowFX "straight-through" muffler is used for a moderate sound level and maximum performance over the stock muffler. Dyno increases of 11 hp and 12 lbs-ft over stock measured at the rear wheels. This system exits out the side, behind the rear wheel with a 4.50-inch black ceramic tip for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.
- Dual 2.50-inch and 3.00-inch mandrel bent 16-gauge 409 stainless steel tubing maximize exhaust flow and improves durability
- A 4.50-inch black ceramic coated tip exits out the side for a custom look

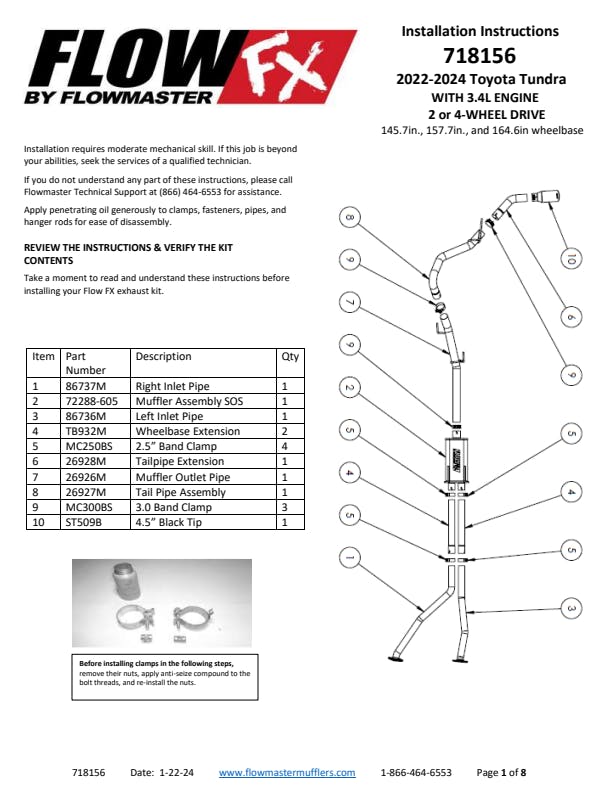

- Includes complete hardware and factory styled hangers in the stock locations for an easy installation
- FlowFX series performance muffler delivers a deep, moderate performance tone and improves exhaust flow for better performance over the stock muffler
- Flowmaster’s Lifetime Limited Warranty
- Gain up to 11 hp and 12 lbs-ft of torque at the rear wheels
Information:
2022-2025 Toyota Tundra trucks with 3.4-liter engines. Fits 2 & 4-wheel drive. Does not fit hybrid models.
Application Summary:
| Year |
Make/Model |
| 2022-2025 |
Toyota Tundra |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
Yes |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Diameter |
4.50 |
| Exhaust Tip Length |
11.00 |
| Exit Position |
SOS |
| GTIN |
00090127832899 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
409 Stainless Steel |
| Mount Type |
Uses Factory Hangers |
| Muffler Body Height |
4.00 |
| Muffler Body Length (in) |
18 |
| Muffler Body Width |
9.00 |
| Muffler Color |
Natural, Silver |
| Muffler Inlet Diameter |
2.50 |
| Muffler Inlet Inside Diameter |
2.50 |
| Muffler Inlet Location |
dual inlet - offset, Dual |
| Muffler Inlet Outside Diameter |
2.63 |
| Muffler Material |
409S Stainless Steel, 409 Stainless Steel |
| Muffler Outlet Diameter |
3.00 |
| Muffler Outlet Location |
Centered, Center |
| Muffler Overall Length |
24.00 |
| Muffler Overall Length (in) |
24 |
| Muffler Part Number |
Kit Only |
| Muffler Series |
FlowFX |
| Muffler Shape |
Oval |
| Product Type |
Exhaust System |
| SDR Required Flag |
N |
| Single Dual |
Single |
| Sound Level |
Moderate/Mild |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Outlet Outside Diameter |
3.00 |
| Tip Cut |
Angle |
| Tip Diameter |
4.50 |
| Tip Edge Style |
Rolled |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
11, 11.00 |
| Tip Logo |
Embossed |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Quantity |
1.00 |
| Tip Style |
Single Wall |
| Tubing Diameter |
3.00 |
| Tubing Diameter (in) |
3.00 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Warning |
California Proposition 65 |
| part type |
Exhaust System Kit |
