Fits 2022-2025 Toyota Tundra 3.4-Liter, Cat-Back, Dual Same Side Exit, Stainless Steel Exhaust System

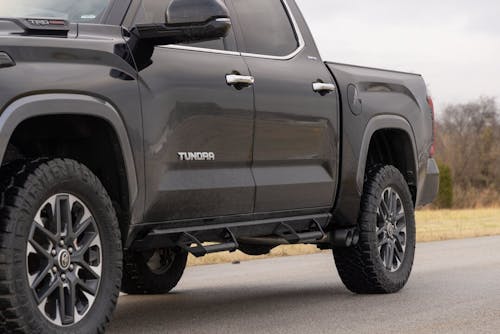

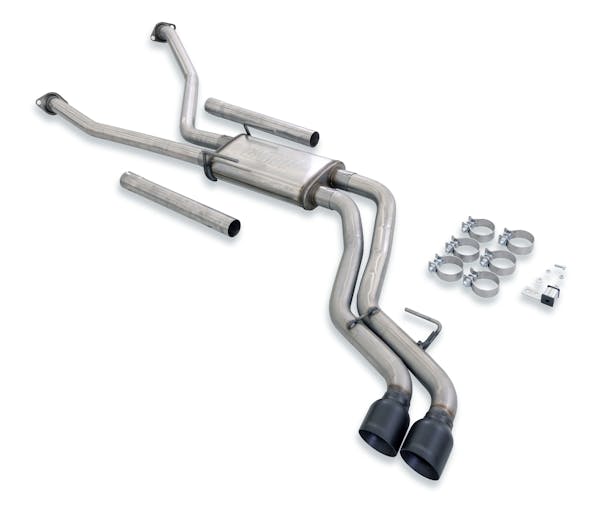

This Flowmaster® Flow FX® cat-back exhaust system for the 2022-2025 Toyota Tundra trucks with the 3.4-liter engine is manufactured using durable 409 stainless steel throughout and features dual 2.50-inch mandrel bent pipes for better exhaust gas flow, and a Flow FX "straight-through" muffler is used for an aggressive to moderate sound level and maximum performance. This system exits out the side, in front of the driver's the rear wheel with dual 4.00-inch black ceramic tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.
- Dual 2.50-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

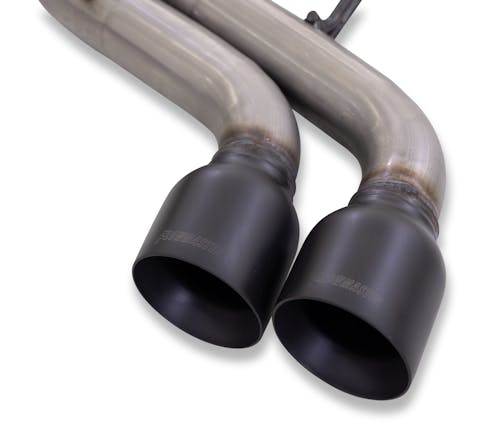

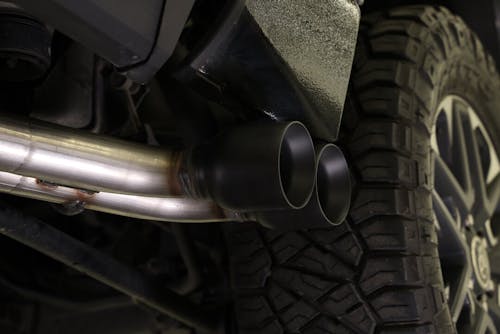

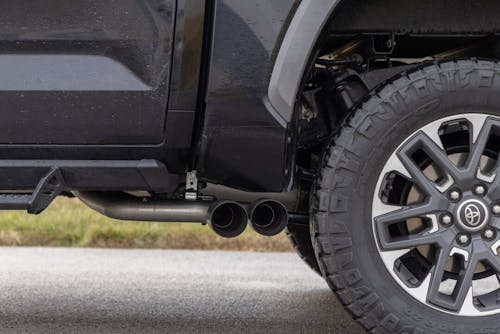

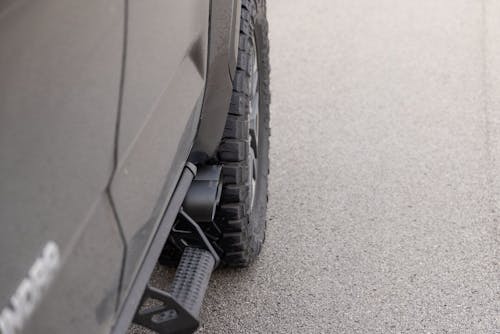

- Dual 4.00-inch black ceramic coated tips exiting before the rear tire add a custom look to the truck

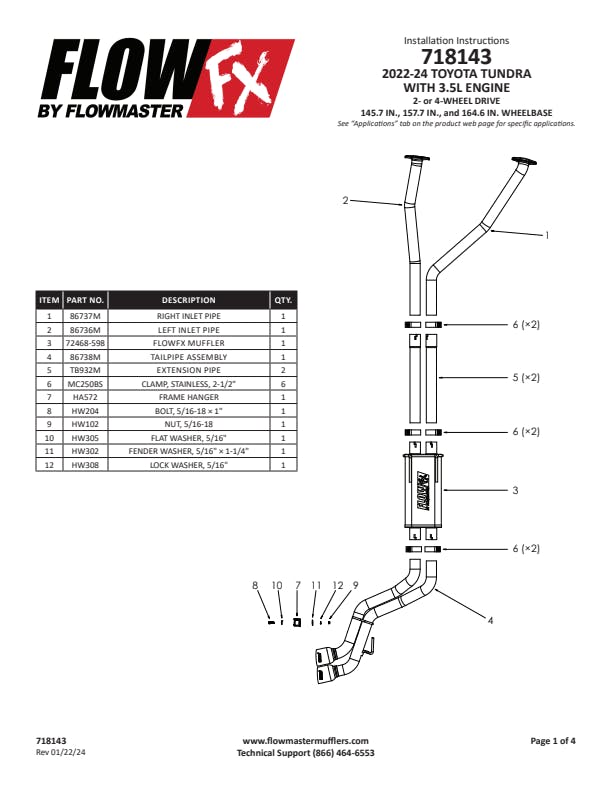

- Includes complete hardware and factory styled hangers in the stock locations for an easy installation

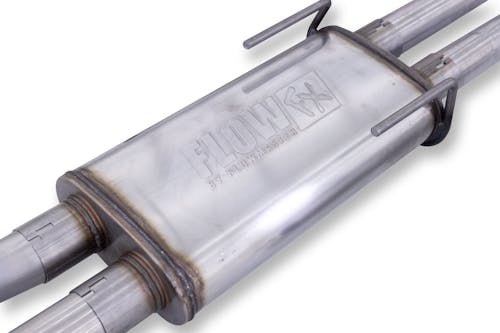

- FlowFX “straight through” performance muffler delivers a deep, aggressive to moderate performance tone and improves exhaust flow
Information:

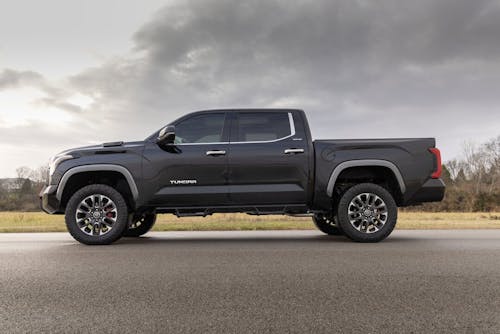

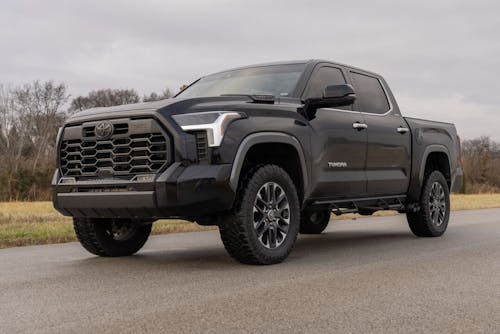

2022-2025 Toyota Tundra trucks with 3.4-liter engines. Fits 2 & 4-wheel drive, 145.7-inch, 157.7-inch, and 164.6-inch wheelbases. Does not fit hybrid models.
Application Summary:
| Year |
Make/Model |
| 2022-2025 |
Toyota Tundra |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
Yes |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Diameter |
4.00 |
| Exhaust Tip Length |
5.25 |
| Exit Position |
DOSS |
| GTIN |
00090127614600 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2-1/2 |
| Material |
409 Stainless Steel |
| Mount Type |
Uses Factory Hangers |
| Muffler Body Height |
4.00 |
| Muffler Body Length (in) |
18 |
| Muffler Body Width |
9.00 |
| Muffler Color |
Natural, Silver |
| Muffler Inlet Diameter |
2.50 |
| Muffler Inlet Inside Diameter |
2.50 |
| Muffler Inlet Location |
Dual Inlet, Dual |
| Muffler Inlet Outside Diameter |
2.63 |
| Muffler Material |
409S Stainless Steel, 409 Stainless Steel |
| Muffler Outlet Diameter |
2.50 |
| Muffler Outlet Location |
Dual Outlet, Dual |
| Muffler Overall Length |
24.00 |
| Muffler Overall Length (in) |
24 |
| Muffler Part Number |
Kit Only |
| Muffler Series |
FlowFX |
| Muffler Shape |
Oval |
| Product Type |
Exhaust System |
| SDR Required Flag |
N |
| Single Dual |
Dual |
| Sound Level |
Aggressive / Moderate |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Outlet Outside Diameter |
2.50 |
| Tip Cut |
Angle |
| Tip Diameter |
4.00 |
| Tip Edge Style |
Cut |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
5.25 |
| Tip Logo |
Embossed |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Quantity |
2.00 |
| Tip Style |
Double Wall |
| Tubing Diameter |
2.50 |
| Tubing Diameter (in) |
2.50 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Warning |
California Proposition 65 |
| part type |
Exhaust System Kit |
