Fits 2014-2024 RAM 2500 6.4-Liter HEMI, Cat-Back, Dual Rear Exit, Flow FX Stainless Steel Exhaust System

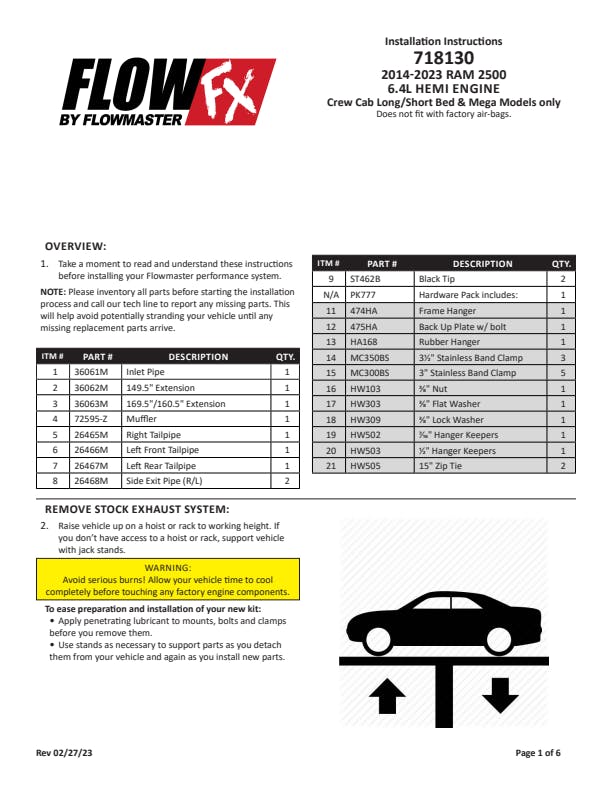

This Flowmaster® Flow FX® cat-back exhaust system for the 2014-2024 RAM 2500 trucks with the 6.4-liter HEMI engine is manufactured using durable 409 stainless steel throughout and features 3.50 to 3.00-inch mandrel bent pipes for better exhaust gas flow. Maximum increases on the dyno revealed 18 hp and 16 lb-ft of torque at the rear wheels over stock. This system exits with dual 4.00-inch black stainless steel tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.

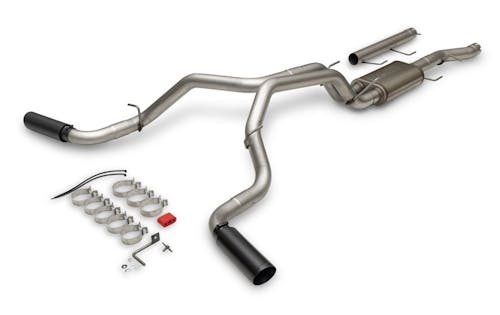

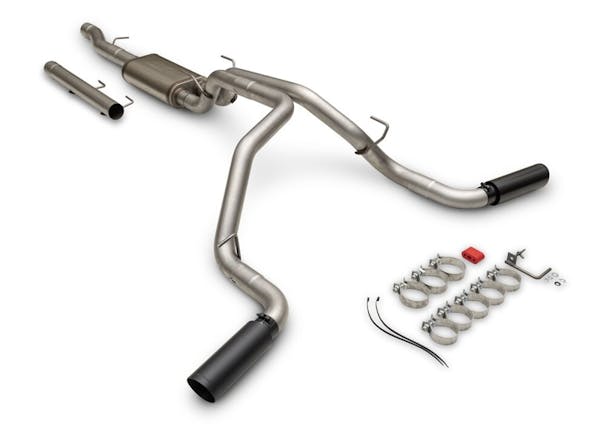

- 3.50-inch to dual 3.00-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

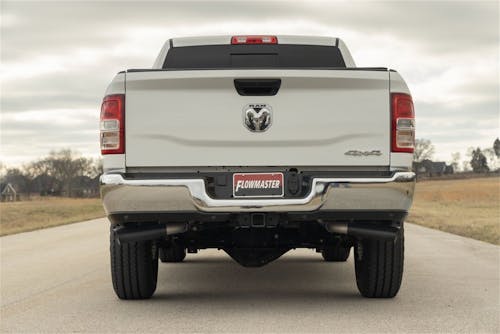

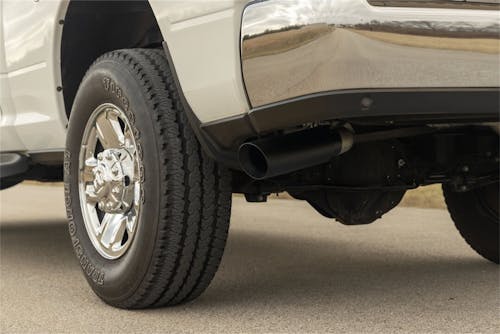

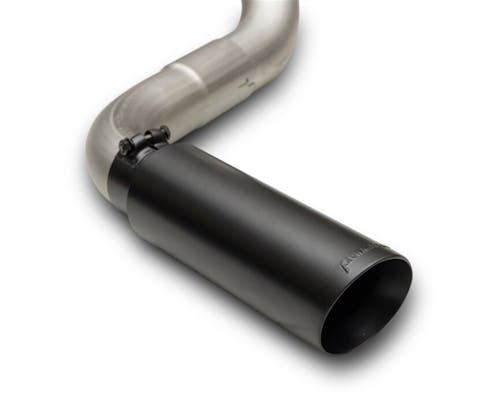

- 4.00-inch black stainless steel tips add a custom look to the truck
- Includes complete hardware and factory styled hangers in the stock locations for an easy installation

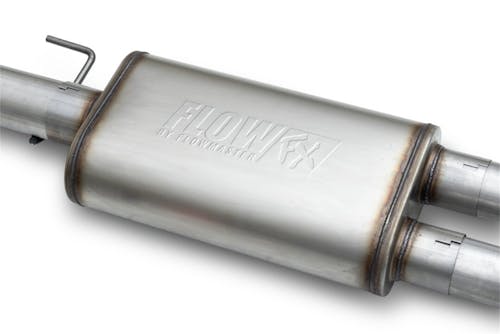

- FlowFX “Straight Through” muffler delivers an aggressive to moderate sound level with increased performance

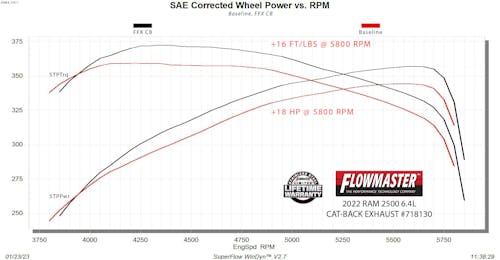

- Max gains of 18 hp and 16 lb-ft of torque at the rear wheels over stock
Information:
2014-2024 RAM 2500 trucks with the 6.4-liter HEMI engine.
Application Summary:
| Year |
Make/Model |
| 2014-2024 |
Ram 2500 |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Diameter |
4.00 |
| Exhaust Tip Length |
13.00 |
| Exhaust Type |
Cat-Back |
| Exit Position |
Dual, DOS |
| GTIN |
00090127788226 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Inlet Inside Diameter |
3.000 in. |
| Life Cycle Status Code |
Available to Order |
| Material |
304 Stainless Steel, 409 Stainless Steel |
| Mount Type |
Uses Factory Hangers |
| Muffler Body Height |
5.00 |
| Muffler Body Length |
18.000 in. |
| Muffler Body Length (in) |
18 |
| Muffler Body Width |
10.00 |
| Muffler Color |
Natural, Silver |
| Muffler Inlet Diameter |
3.50 |
| Muffler Inlet Inside Diameter |
3.50 |
| Muffler Inlet Location |
Centered, Center |
| Muffler Inlet Outside Diameter |
3.63 |
| Muffler Material |
409S Stainless Steel, 409 Stainless Steel |
| Muffler Outlet Diameter |
3.00 |
| Muffler Outlet Location |
Dual Outlet, Dual |
| Muffler Overall Length |
24.00 |
| Muffler Overall Length (in) |
24 |
| Muffler Part Number |
Kit Only |
| Muffler Series |
FlowFX |
| Muffler Shape |
Oval |
| NAFTA Preference Criterion Code |
B |
| Product Type |
Cat-Back Exhaust, Exhaust System |
| SDR Required Flag |
N |
| Sale Category |
Exhaust |
| Single Dual |
Dual |
| Sound Level |
Aggressive / Moderate |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tail Pipe Diameter |
3.000 in. |
| Tail Pipe Outlet Outside Diameter |
3.00 |
| Tip Cut |
Angle |
| Tip Diameter |
4.000 in., 4.00 |
| Tip Edge Style |
Cut |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
13, 13.00 |
| Tip Logo |
Embossed |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Quantity |
2.00 |
| Tip Style |
Double Wall |
| Tubing Diameter |
3.000 in., 3.00 |
| Tubing Diameter (in) |
3.00 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Warning |
California Proposition 65 |
| part type |
Exhaust System Kit |
