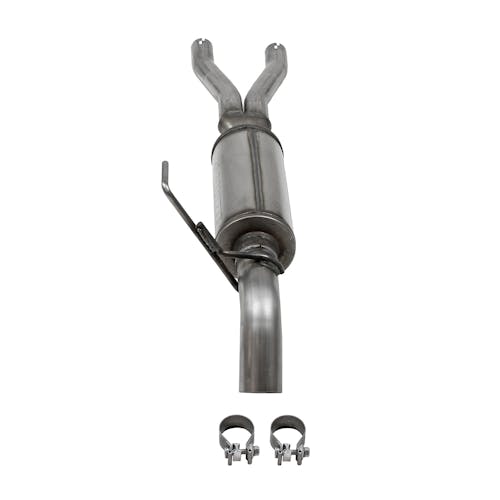

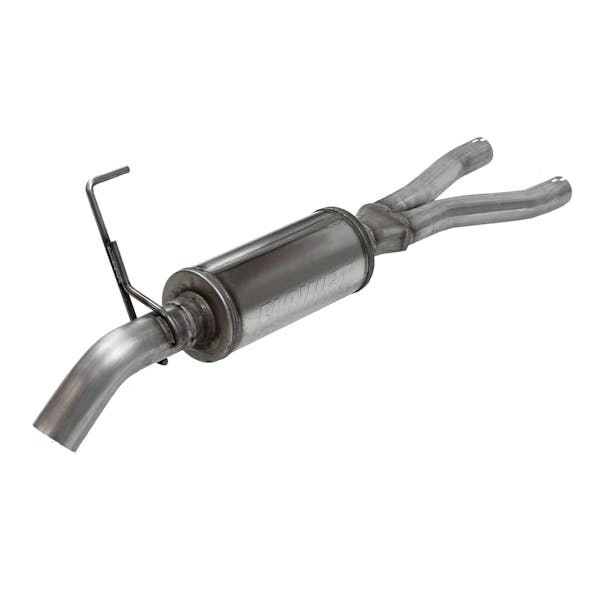

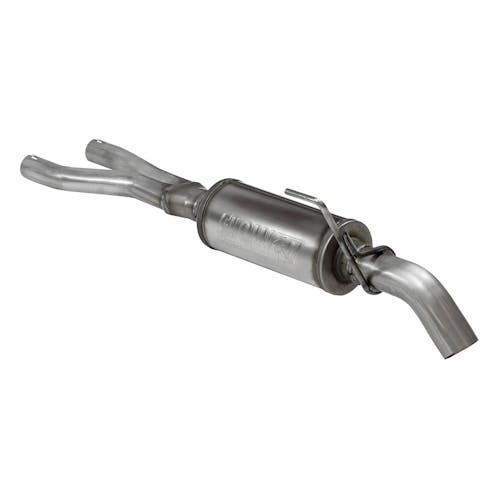

Fits 2004-2015 Nissan Titan 5.6-Liter, Flow FX Extreme, 3.0-inch Cat-Back Stainless Steel Exhaust System
Flowmaster introduces our Flow FX Extreme stainless steel cat-back exhaust system for the 2004-2015 Nissan Titan with the 5.6-liter engine. This system uses a Flow FX series muffler for an aggressive to moderate sound level and increased performance. 3.00-inch mandrel bent 409 stainless steel tubing allows for maximum exhaust flow and durability. Dyno tests resulted in an extra 16 hp and 23 lb-ft of torque at the rear wheels over stock. The system has a turndown style, dump exit right after the muffler to eliminate the over-axle tailpipe. This elimination of the tailpipe helps improve ground clearance and departure angle when you are driving in more extreme off-road situations. All of the necessary hardware is included, and factory-mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.

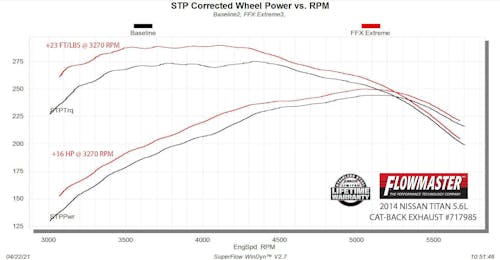

- Up to 16 hp and 23 lb-ft of torque over stock at the rear wheels
- 3.00-inch mandrel bent 16-gauge stainless steel tubing maximizes exhaust flow for better power
- 409 Stainless steel construction delivers durability and improved long-term corrosion resistance

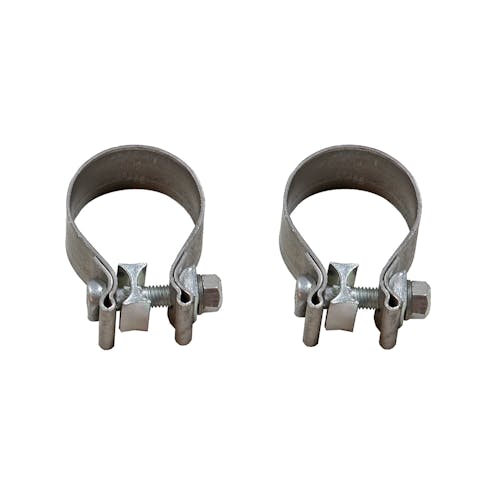

- Includes complete hardware and factory styled hangers in the stock locations for an easy installation

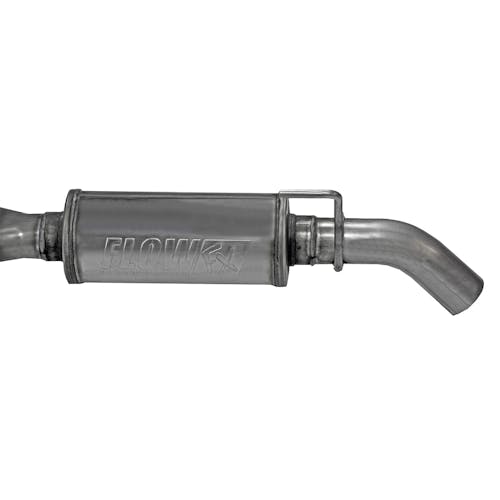

- FlowFX Series performance muffler offers an aggressive to moderate sound level with increased performance
- Dump style exit allows for better ground clearance when in extreme off-road conditions
- Backed by Flowmaster’s Lifetime Limited Warranty
Information:
Fits 2004-2015 Nissan Titan with the 5.6-liter engine.
Application Summary:
| Year |
Make/Model |
| 2004-2015 |
Nissan TITAN |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
Yes |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust, Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5, 5 |
| Exhaust Series |
FlowFX, FlowFX |
| Exhaust System Kit Type |
Cat-Back, Cat-Back |
| Exhaust Tip Diameter |
3.00 |
| Exit Position |
SOD (Single Out Dump), SOD (Single Out Dump) |
| GTIN |
00090127135020 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
409 Stainless Steel, 409 Stainless Steel |
| Mount Type |
Uses Factory Hangers, Uses Factory Hangers |
| Muffler Body Diameter |
6.00 |
| Muffler Body Length (in) |
14 |
| Muffler Color |
Natural, Silver |
| Muffler Inlet Diameter |
3.00, 3.00 |
| Muffler Inlet Inside Diameter |
3.00 |
| Muffler Inlet Location |
Centered, Center |
| Muffler Inlet Outside Diameter |
3.13 |
| Muffler Material |
409S Stainless Steel, 409 Stainless Steel |
| Muffler Outlet Diameter |
3.00, 3.00 |
| Muffler Outlet Location |
Centered, Center |
| Muffler Overall Length |
48.78, 48.78 |
| Muffler Overall Length (in) |
48.78 |
| Muffler Part Number |
Kit Only, Kit Only |
| Muffler Series |
FlowFX, FlowFX |
| Muffler Shape |
Round, Round |
| Product Type |
Exhaust System, Exhaust System |
| SDR Required Flag |
N |
| Single Dual |
Single, Single |
| Sound Level |
Aggressive / Moderate, Aggressive / Moderate |
| Sub Category |
Exhaust and Tail Pipes, Exhaust and Tail Pipes |
| System Type |
Cat-back, Cat-back |
| Tail Pipe Outlet Outside Diameter |
3.00 |
| Tip Cut |
Turndown, Turndown |
| Tip Diameter |
3.00, 3.00 |
| Tip Edge Style |
Cut, Cut |
| Tip Style |
Not Included, Not Included |
| Tubing Diameter |
3.00, 3.00 |
| Tubing Diameter (in) |
3.00 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Warning |
California Proposition 65, California Proposition 65 |
| part type |
Exhaust System Kit, Exhaust System Kit |
