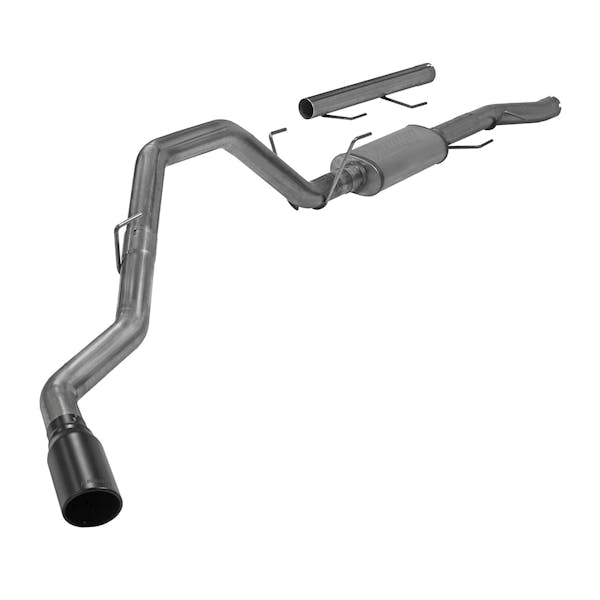

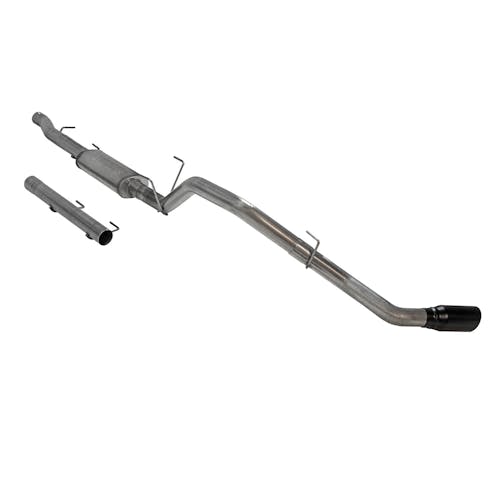

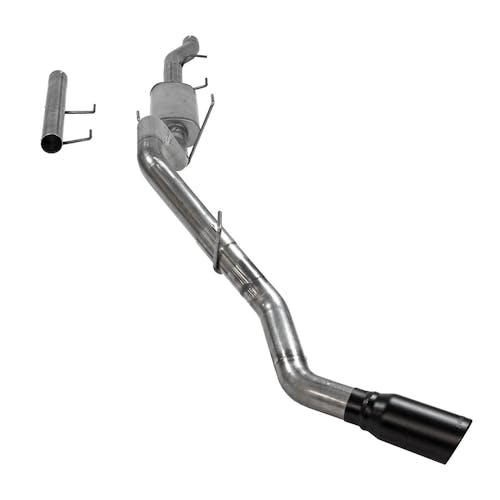

Fits 2014-2024 RAM 2500/3500 6.4L V8 Flow FX 3.50" Cat-Back, Single Side Exit, Stainless Steel Exhaust System
This Flowmaster® Flow FX® cat-back exhaust system for the 2014-2024 RAM 2500/3500 trucks with the 6.4-liter engine is manufactured using durable 409 stainless steel throughout and features 3.50-inch mandrel bent pipes for better exhaust gas flow, and a Flow FX "straight-through" muffler is used for a moderate sound level and maximum performance. Maximum increases on the dyno revealed +13 hp and +15 lb-ft at the rear wheels. This system exits out the side, behind the rear wheel with a 5.00-inch black ceramic tip for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.
- Max increases of up to 13 hp and 15 lb-ft over the stock exhaust at the rear wheels
- 3.50-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

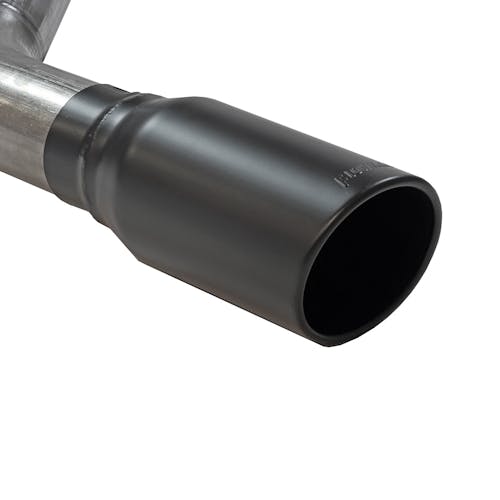

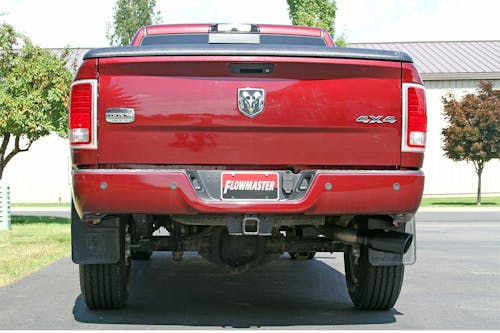

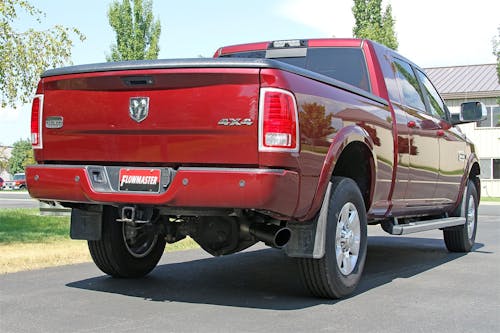

- 5.00-inch black ceramic coated tip adds a custom look to the truck

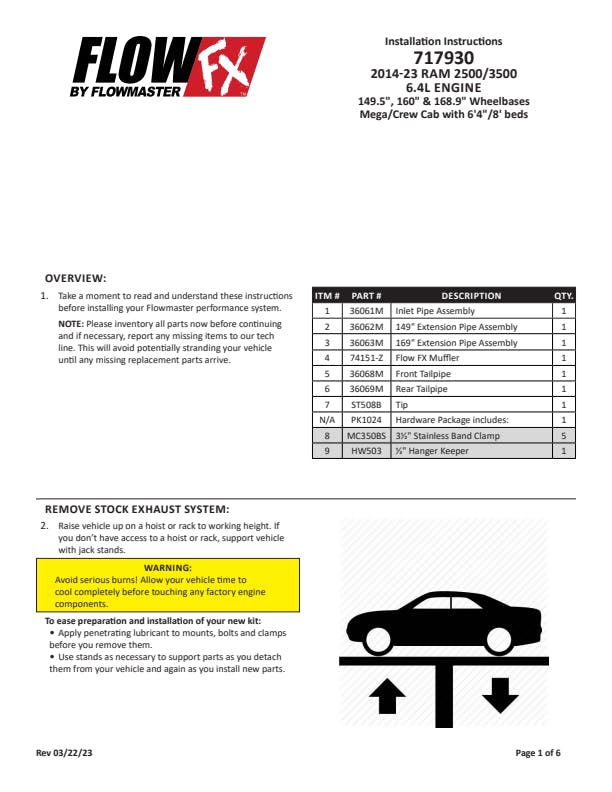

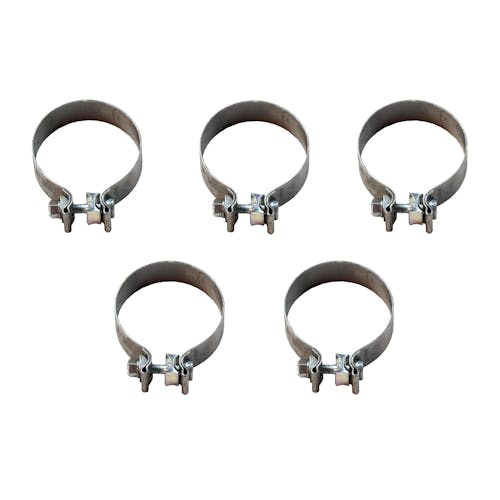

- Includes complete hardware and factory styled hangers in the stock locations for an easy installation

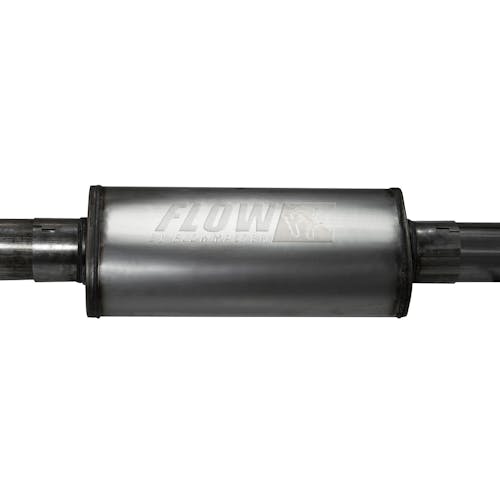

- FlowFx “straight through” performance muffler delivers a deep, moderate performance tone and improves exhaust flow
- Backed by Flowmaster’s Lifetime Limited warranty
Information:
Fits Mega/Crew Cab with 6'4" / 8' bed trucks with 149.5", 160" and 168.9" wheelbases.
Application Summary:
| Year |
Make/Model |
| 2014-2024 |
Ram 2500 |
| 2014-2024 |
Ram 3500 |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Type |
Cat-Back |
| Exit Position |
Single Side, Single Out Side |
| GTIN |
00090127092637 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
3-1/2 |
| Material |
409 Stainless Steel |
| Mount Type |
Uses Factory Hangers |
| Muffler Body Length (in) |
18 |
| Muffler Color |
Natural, Silver |
| Muffler Inlet Diameter |
3.50 |
| Muffler Inlet Diameter (in) |
3.5, 3.50 |
| Muffler Inlet Location |
Centered, Center |
| Muffler Material |
409S Stainless Steel, 409 Stainless Steel |
| Muffler Outlet Diameter |
3.50 |
| Muffler Outlet Diameter (in) |
3.5, 3.50 |
| Muffler Outlet Location |
Centered, Center |
| Muffler Overall Length |
24.00 |
| Muffler Overall Length (in) |
24 |
| Muffler Part Number |
Kit Only |
| Muffler Series |
FlowFX |
| Muffler Shape |
Oval |
| NAFTA Preference Criterion Code |
B |
| Product Type |
Exhaust System |
| SDR Required Flag |
N |
| Sale Category |
Exhaust |
| Single Dual |
Single |
| Sound Level |
Moderate |
| Sub Category |
Exhaust and Tail Pipes |
| System Type |
Cat-back |
| Tip Cut |
Angle |
| Tip Diameter |
5.000 in., 5.00 |
| Tip Edge Style |
Rolled |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
12, 12.00 |
| Tip Logo |
Embossed |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Quantity |
1.00 |
| Tip Style |
Single Wall |
| Tubing Diameter |
3.500 in., 3.50 |
| Tubing Diameter (in) |
3.5 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Warning |
California Proposition 65 |
| part type |
Exhaust System Kit |
