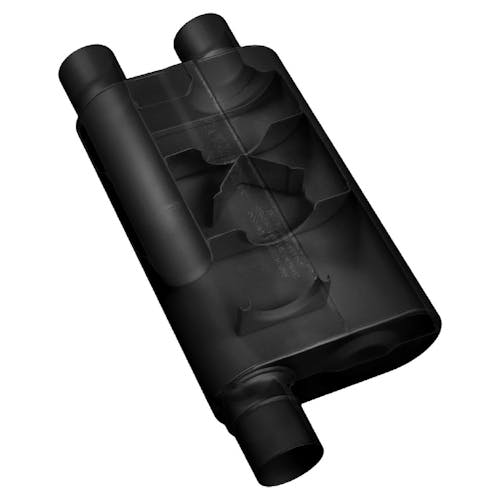

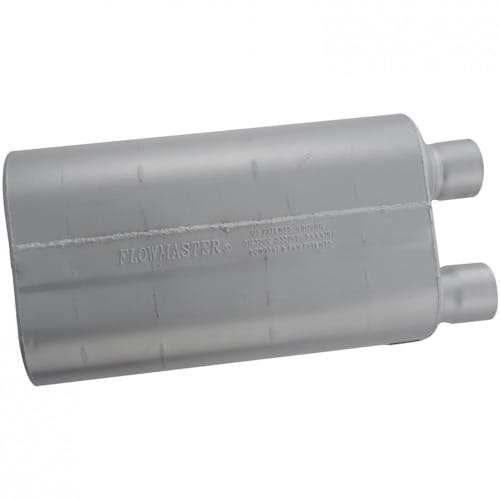

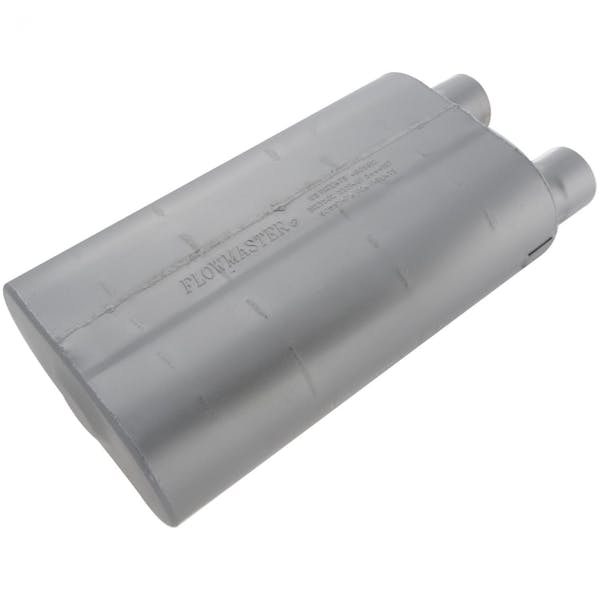

80 Series Crossflow - 2.50 Offset In / 2.50 Same Side Out - Aggressive Sound
The 80 series is a cross-flow design for applications where the muffler is mounted transversely behind the rear end. The inlet is located next to one of the outlets on the same side of the case. Delivering an aggressive muscle car sound both inside and outside the vehicle. Delivering an aggressive muscle car sound both inside and outside the vehicle, this is an excellent replacement for Camaros & Firebirds with transverse mufflers. Constructed of 16 gauge aluminized steel and fully MIG welded for maximum durability.
- Aggressive Sound Exterior Exhaust Tone
- Noticeable interior resonance
- The original two chamber design
- Cross Flow Applications
Information:
Universal Muffler - Some adaptation may be required.
Application Summary:
| Year |
Make/Model |
| Universal |
Muffler - Not a direct fit. Some adaptation required. |
| Attributes |
| ASIN |
B000CEBWQA |
| Automotive Item Grade |
High Performance |
| Body Diameter (in) |
2.5 |
| Body Height |
5.000 in. |
| Body Height (in) |
5 |
| Body Height (in.) |
5 |
| Body Length |
17.000 in. |
| Body Length (in) |
17 |
| Body Length (in.) |
17, 17.0 |
| Body Width |
10.000 in. |
| Body Width (in) |
10 |
| Body Width (in.) |
10 |
| Brand |
Flowmaster |
| Bullet Point #1 |
Aggressive Sound Exterior Exhaust Tone |
| Bullet Point #2 |
Noticeable interior resonance |
| Bullet Point #3 |
The original two chamber design |
| Bullet Point #4 |
Cross Flow Applications |
| California Proposition 65 |
No |
| Category |
Exhaust |
| Color |
Black |
| Country of Origin (Primary) |
CN |
| Emission Code |
5 |
| Fitment |
Universal |
| GTIN |
00700042017614 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Connection Type |
Pipe, Pipe Connection |
| Inlet Diameter |
2.500 in., 2.50 |
| Inlet Diameter (in) |
2.5 |
| Inlet Inside Diameter |
2.500 in. |
| Inlet Inside Diameter (in.) |
2.5 |
| Inlet Outside Diameter |
2.500 in. |
| Inlet Position |
Offset |
| Inlet Size (in.) |
2.5 |
| Inlet Type |
Single Offset |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2.500 in. |
| Main Piping Diameter (in.) |
2.5 |
| Material |
Aluminized Steel |
| Mount Type |
Uses New Hangers (Not Included) |
| Muffler Count |
1 |
| Muffler Series |
80 Series Crossflow |
| Muffler Type |
Reflection |
| NAFTA Preference Criterion Code |
B |
| Outlet Connection Type |
Pipe, Pipe Connection |
| Outlet Diameter |
2.500 in., 2.50 |
| Outlet Diameter (in) |
2.5 |
| Outlet Location |
Offset (Same End) |
| Outlet Outside Diameter |
2.500 in. |
| Outlet Outside Diameter (in.) |
2.5 |
| Outlet Position |
Same Side, Offset (Same End) |
| Outlet Size (in.) |
2.5 |
| Outlet Type |
Single Offset Outlet |
| Overall Length |
20.000 in. |
| Overall Length (in) |
20 |
| Overall Length (in.) |
20.000 in. |
| Position |
N/A |
| Product Type |
Street Mufflers |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Series |
80 Series Mufflers |
| Shape |
Oval |
| Sound Level |
Aggressive, Aggressive Sound |
| Sub Category |
Mufflers |
| Subcategory |
Mufflers |
| Type of Muffler |
Chambered |
| Vehicle Type |
Classic Muscle Car, Late Model Muscle Car |
| Warranty Time |
36 |
| part type |
Exhaust Muffler |
