Fits 1973-1987 Chevrolet/GMC Trucks.

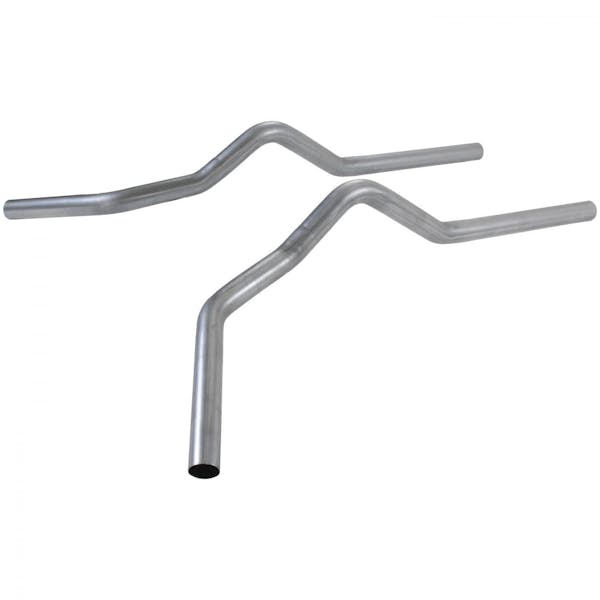

These Builder Series tailpipes are constructed from 2.50-inch mandrel-bent 16-gauge aluminized steel tubing for maximum flow, tuck up high in the chassis for good clearance and exit out the sides behind the rear wheels. Designed to be used with Center Inlet/Side Outlet mufflers such as part# 942547 (Super 44 Series) or 53057 (Super 50 Series) mufflers. Covered by our 3-year Limited Warranty. Note: Not designed to fit in factory bumper exhaust cutouts. Some fitment may be necessary. Does Not include installation hardware or exhaust tips.
- Designed for Center Inlet/Side Outlet Mufflers
- Exits Out the Sides Behind the Rear Wheels
- Mandrel-bent for Maximum Performance
- High Clearance around Rear Differential
- 16 Gauge Aluminzed Steel Tubing
- Does Not Include Hardware
- 3-year Limited Warranty
Information:
Fits 1973-1987 Chevrolet/GMC Trucks. Use with Center Inlet/Side Outlet mufflers.
Application Summary:
| Year |
Make/Model |
| 1975-1986 |
Chevrolet C10 |
| 1973-1974 |
Chevrolet C10 Pickup |
| 1982-1985 |
Chevrolet C15 |
| 1975-1987 |
Chevrolet C20 |
| 1975-1986 |
Chevrolet C30 |
| 1975-1986 |
Chevrolet K10 |
| 1975-1986 |
Chevrolet K20 |
| 1977-1986 |
Chevrolet K30 |
| 1987 |
Chevrolet R10 |
| 1987 |
Chevrolet R20 |
| 1975-1978 |
GMC C15 |
| 1973-1974 |
GMC C15/C1500 Pickup |
| 1979-1986 |
GMC C1500 |
| 1975-1978 |
GMC C25 |
| 1973-1974 |
GMC C25/C2500 Pickup |
| 1979-1986 |
GMC C2500 |
| 1975-1978 |
GMC K25 |
| 1979-1986 |
GMC K2500 |
| 1987 |
GMC R1500 |
| 1987 |
GMC R2500 |
| Attributes |
| ASIN |
B000CH9PT8 |
| Automotive Item Grade |
High Performance, High Performance |
| Brand |
Flowmaster, Flowmaster |
| Bullet Point #1 |
Mandrel bent 16 Gauge Tubing |
| Bullet Point #2 |
Exits at rear of vehicle |
| Bullet Point #3 |
Gray Color |
| Bullet Point #4 |
Premium Quality |
| California Proposition 65 |
No |
| Category |
Exhaust, Exhaust |
| Color |
Gray |
| Country of Origin (Primary) |
US |
| Emission Code |
5, 5 |
| Exhaust Pipe Wall Max Gauge |
16 |
| Exhaust Pipe Wall Maximum Gauge |
16, 16 |
| Exit Position |
Single Side, Single Side Exit |
| Fitment |
Direct OE Replacement, Custom Fit |
| GTIN |
00700042011582 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
2.500 in., 2.50 |
| Inlet Diameter (in) |
2.5 |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2-1/2 |
| Material |
Aluminized Steel |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
2.500 in., 2.50 |
| Outlet Diameter (in) |
2.5 |
| Overall Length |
65.250 in., 65.25 |
| Overall Length (in) |
65.25 |
| Overall Length (in.) |
65.250 in. |
| Position |
N/A |
| Product Type |
Exhaust Accessories, Exhaust Accessories |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Series |
Builder Accessories |
| Sub Category |
Exhaust and Tail Pipes |
| Subcategory |
Miscellaneous Exhaust |
| System Type |
Tailpipe, Tailpipe Kit |
| Tube Diameter |
2.5 inch, 2.50 |
| Tubing Diameter |
2.500 in., 2.50 |
| Tubing Diameter (in) |
2.5 |
| Type of Exhaust |
Tail Pipe Kit, Tail Pipe Kit |
| Universal Or Specific Fit |
Specific Fit |
| Warranty Time |
36 |
| part type |
Exhaust Tail Pipe |
