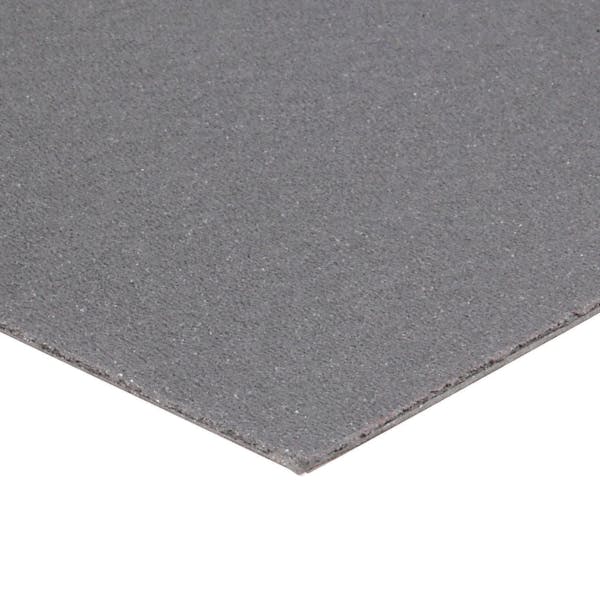

One sheet of Heavy Duty Damping Material
If vibration damping is the goal, then this is the product. Boom Mat Heavy Duty Damping Material is a flexible extensional viscoelastic damping material designed to provide maximum damping efficiency in the most demanding applications. Designed for use on large flat metal areas with minimal contours. Perfect for exposed areas where a paintable textured finish is desired. Currently available in 24 x 54 (.070 thick) Use as a first layer instead of Boom Mat Damping Material for larger flat metal areas without complex contours.
If vibration damping is the goal, then this is the product. Boom Mat Heavy Duty Damping Material is a flexible extensional viscoelastic damping material designed to provide maximum damping efficiency in the most demanding applications. Designed for use on large flat metal areas with minimal contours. Perfect for exposed areas where a paintable textured finish is desired. Currently available in 24 x 54 (.070 thick) Use as a first layer instead of Boom Mat Damping Material for larger flat metal areas without complex contours.
- A measured density of 111 lb/ft3 and a surface density of .65 lb
- Provides the widest temperature range of active damping, essenti
- Superior transmission loss performance of up to 3 db(A)
- Supplied with a 96/lb bleached craft release liner, the thickest
- Excellent thermal properties and anti-corrosion protection
- Flammability rating of UL 94V-0
- Temperature range -20 degrees F to 175 degrees F
- Black wrinkle finish wear surface gives a finished look
- 24in x 54in x 0.07in (9 sq ft)
Information:
If vibration damping is the goal, then this is the product. Boom Mat Heavy Duty Damping Material is a flexible extensional viscoelastic damping material designed to provide maximum damping efficiency in the most demanding applications. Designed for use on large flat metal areas with minimal contours. Perfect for exposed areas where a paintable textured finish is desired. Currently available in 24 x 54 (.070 thick) Use as a first layer instead of Boom Mat Damping Material for larger flat metal areas without complex contours.| Attributes | |
| Adhesive | No |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color | Gray |
| Country of Origin (Primary) | US |
| Cutting Required | Yes |
| GTIN | 00607078502308 |
| Harmonized Tariff Code (Schedule B) | 4008210000 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available Only While Supplies Last |
| Material | Heavy Duty Damping Material |
| NAFTA Preference Criterion Code | B |
| Overall Length | 24.000 in. |
| Reusable | Yes |
| SDR Required Flag | N |
| Shape | Straight |
| Thickness | .250 in., 0.25 |
| Universal Or Specific Fit | Specific |
| Warranty Time | 1 |
| Width | 54.000 in., 24.000 in., 24 |
Design Engineering, Inc. 50230 Damping Heavy Duty 24in x 54in
Product Information
- Brand: Design Engineering, Inc.
- Product Number: 50230
