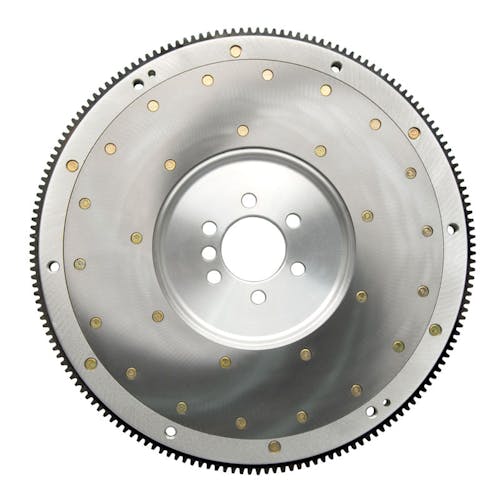

Centerforce billet aluminum flywheels are made from aircraft-grade billet aluminum which features replaceable heat-treated steel friction surfaces. These lightweight and low inertia flywheels are CNC-machined and SFI-certified.
Centerforce aluminum flywheels are manufactured from aircraft-grade billet aluminum for lightweight and low inertia. Centerforce aluminum flywheels also feature mechanically retained starter ring gears as well as replaceable steel friction surfaces that have been heat-treated for abrasion resistance and long life. These flywheels are CAD/CAM-designed and CNC-machined to deliver perfect, no-hassle, bolt-in installation. Centerforce aluminum flywheels are available for popular domestic, import, cars and trucks. Centerforce billet aluminum flywheels are SFI-certified, so you know that you can count on them, on the street and on the track.
- Weighs 13.6 lbs;
- Mechanically Retained Starter Ring Gear
- Replaceable Steel Friction Surface
- Low Inertia / Light Weight
- Cad/cam Designed And Cnc Machined
- Precision Balanced
- Domestic And Import Applications
Application Summary:
| Year |
Make/Model |
| 1986-1992 |
Chevrolet Camaro |
| 1986-1988 |
Chevrolet Corvette |
| 1986-1992 |
Pontiac Firebird |
| Attributes |
| ASIN |
B000VU5NXS |
| Attribute Data |
2 |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Clutch Bolt Pattern |
2 |
| Country of Origin (Primary) |
US |
| Crankshaft Bolt Hole Quantity |
6, 6 |
| Emission Code |
Legal US |
| Flywheel Counter Balance Weight |
23.4 IN/OZ, 23.4 |
| Flywheel Crank Bolt Qty |
6 |
| Flywheel Crank Flange Register |
2.068, 2.068 |
| Flywheel Deck Height |
0.960, 0.960 |
| GTIN |
00788442012422 |
| Harmonized Tariff Code (Schedule B) |
8708998175 |
| Hazardous Material Code |
N |
| Includes |
Flywheel |
| Life Cycle Status Code |
Available to Order |
| Made In The USA |
Assembled |
| Material |
Billet Aluminum |
| NAFTA Preference Criterion Code |
B |
| Out of Package Weight |
13.6 |
| Outside Diameter |
12.835 |
| Rear Main Seal Style |
1 |
| Replaceable Friction Surface |
Y |
| Ring Gear O.D |
12.835 |
| Ring Gear O.D. |
12.835 |
| Ring Gear OD |
12.835 |
| Ring Gear Tooth Count |
153 |
| SDR Required Flag |
N |
| SFI 1.1 Approved |
Y |
| Seal Type |
1 |
| Standard Pack |
1 |
| Tooth Quantity |
153 |
| Warranty Time |
12 |
