Carli's most popular system, The pintop kit boasts Remote Reservoir King 2.5" shocks. Designed and tuned in house for the customer looking for substantial on and offroad performance improvement.

---

Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

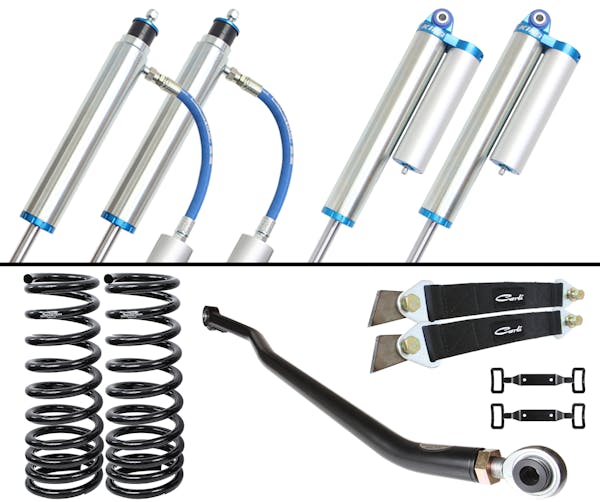

• System includes Multi-rate front coil springs, front and rear shock package, and adjustable track bar.
• Truck wil sit 2.5-3" higher (year/cab coniguration dependent) and wheel travel will be increased by 50% thanks to the taller, lighter rate coil springs.
• Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
• Requires but does not include leaf spring option and sway bar option.

---

Information:

Hydro Bump Kit - Front: CS-DHYDRO-F-6

---

Application Summary:

Year	Make/Model
2003-2009	Dodge Ram 2500
2003-2009	Dodge Ram 3500
