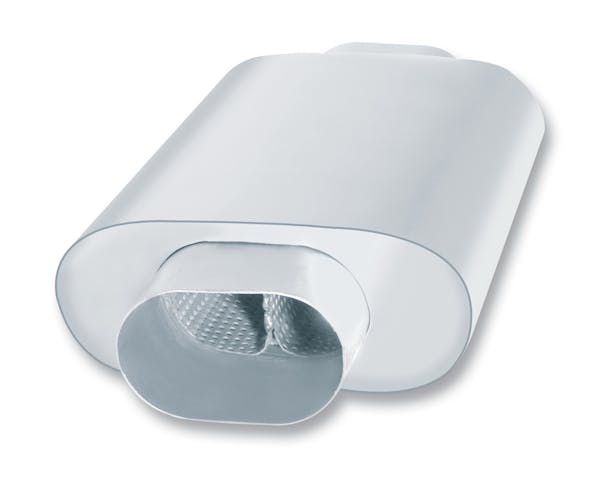

XR-1 Multi-Core Slim Line Racing Muffler - 3.5" Oval Pipe Center Inlet/ 3.5" Oval Pipe Center Outlet 3" x 7.88 Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design.
Slim Line Racing Muffler. Designed for low profile vehicles with limited space. It features a 3 x 7.88 oval body. Necks are 3.5 tubing formed into 4.13 x 2.61 oval. Reversible design for installation flexibility. Patented Multicore design for maximum power. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. High temperature T-304 stainless steel wool for sound control. Free Flow design for improved performance. There is no logo embossment on this part. Best of all, it's made in the USA. Just what you'd expect from the world's most experienced (and most winning) exhaust brand.
- Maximum Ground Clearance
- Maintains Significant Sound Attenuation
- Austenitic Stainless Steel
- Million Mile Warranty
Information:
Maximum Ground Clearance; Maintains Significant Sound Attenuation; Austenitic Stainless Steel; Million Mile Warranty
Application Summary:
| Year |
Make/Model |
| XR-1(r) |
Multi-Core Slim Line Racing Muffler - 3.5" (4.13" x 2.61" Oval) Center Inlet/ 3.5" (4.13" x 2.61" Oval) Center Outlet 3" x 7.88 Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design. |
| Attributes |
| Body Height |
7.880 in. |
| Body Height (in.) |
7.88 |
| Body Length |
12.000 in. |
| Body Length (in.) |
12 |
| Body Width |
3.000 in. |
| Body Width (in.) |
3 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Construction |
All Welded |
| Country of Origin (Primary) |
US |
| Emission Code |
Not in CA |
| GTIN |
00808422405362 |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Connection Type |
Pipe |
| Inlet Inside Diameter |
3.500 in. |
| Inlet Inside Diameter (in.) |
3.5 |
| Inlet Outside Diameter |
3.500 in. |
| Inlet Position |
Center |
| Inlet Size (in.) |
3.5 |
| Inlet Type |
Single Center |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
3.500 in. |
| Main Piping Diameter (in.) |
3.5 |
| Material |
T-304 Stainless Steel |
| Muffler Count |
1 |
| NAFTA Preference Criterion Code |
B |
| Off Road Use Only |
No |
| Outlet Outside Diameter |
3.500 in. |
| Outlet Outside Diameter (in.) |
3.5 |
| Outlet Position |
Center |
| Outlet Size (in.) |
3.5 |
| Outlet Type |
Single Center Outlet |
| Overall Length |
17.000 in. |
| Overall Length (in.) |
17.000 in. |
| Position |
N/A |
| SDR Required Flag |
N |
| Shape |
Oval |
| Tip / Outlet Finish |
N/A |
| Title Extended |
XR-1 Multi-Core Racing Muffler Slim Line 3.5in (4.13in x 2.61in Oval) Center Inlet/ 3.5in Center (4.13in x 2.61in Oval) Outlet 3in x 7.88in Oval x 12in Long Body Part # 40536 |
