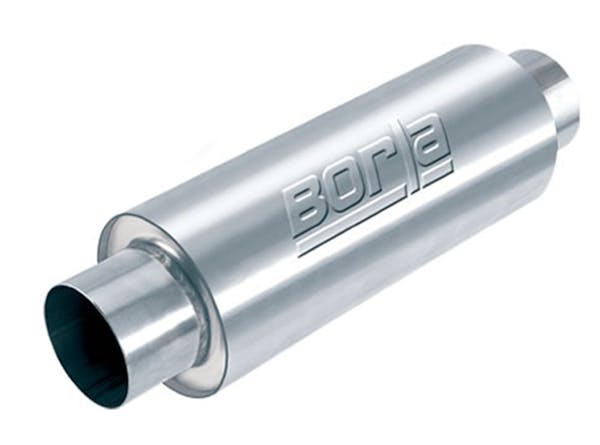

XR-1 Multi-Core Racing Muffler For Rotary Engine Equipped Vehicles - 4" Center Inlet/ 4" Center Outlet 6.25" Round x 16" Long Body 21" Overall Length. Universal Part. Reversible Design.
Designed for rotary engine equipped vehicles, but can be used on other applications. Reversible design for installation flexibility. Patented Multicore design for maximum power. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. High temperature T-304 stainless steel wool packing for sound control. There is no logo embossment on this part. Best of all, it's made in the USA. Just what you?d expect from the world?s most experienced (and most winning) exhaust brand.
- Race Muffler
- Patented Multi-Core Technology
Information:
Race Muffler; Patented Multi-Core Technology
Application Summary:
| Year |
Make/Model |
| XR-1? |
Multi-Core Racing Muffler For Rotary Engine Equipped Vehicles - 4" Center Inlet/ 4" Center Outlet 6.25" Round x 16" Long Body 21" Overall Length. Universal Part. Reversible Design. |
| Attributes |
| Body Height |
6.250 in. |
| Body Height (in.) |
6.25 |
| Body Length |
16.000 in. |
| Body Length (in.) |
16 |
| Body Width |
6.250 in. |
| Body Width (in.) |
6.25 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Construction |
All Welded |
| Country of Origin (Primary) |
US |
| Emission Code |
Not in CA |
| GTIN |
00808422003742 |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Connection Type |
Pipe |
| Inlet Inside Diameter |
4.000 in. |
| Inlet Inside Diameter (in.) |
4 |
| Inlet Outside Diameter |
4.000 in. |
| Inlet Position |
Center |
| Inlet Size (in.) |
4 |
| Inlet Type |
Single Center |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
4.000 in. |
| Main Piping Diameter (in.) |
4 |
| Material |
T-304 Stainless Steel |
| Muffler Count |
1 |
| NAFTA Preference Criterion Code |
B |
| Off Road Use Only |
No |
| Outlet Outside Diameter |
4.000 in. |
| Outlet Outside Diameter (in.) |
4 |
| Outlet Position |
Center |
| Outlet Size (in.) |
4 |
| Outlet Type |
Single Center Outlet |
| Overall Length |
21.000 in. |
| Overall Length (in.) |
21.000 in. |
| Position |
N/A |
| SDR Required Flag |
N |
| Shape |
Round |
| Tip / Outlet Finish |
N/A |
| Title Extended |
XR-1 Multi-Core 4in Center-Center 16inx6.25in Round - Rotary Engine Equipped Racing Muffler Part # 400374 |
