Designed to Spread the Load and Protect Lower Sill Area

---

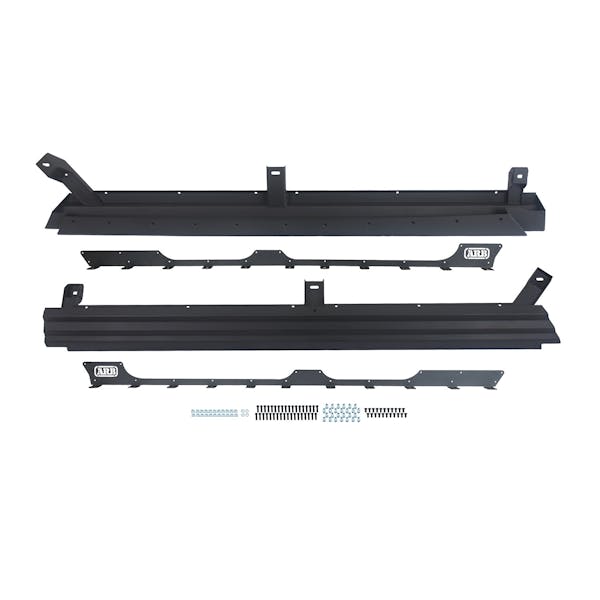

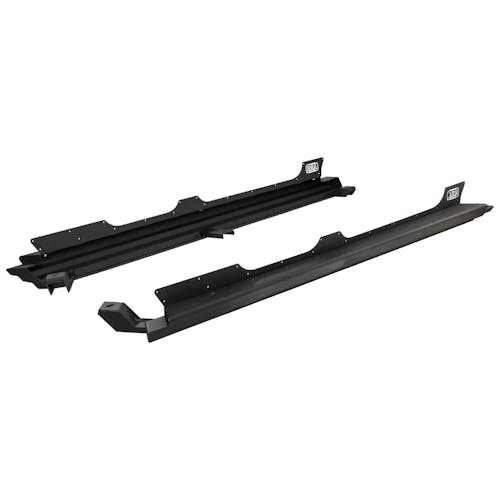

Combining functionality, strength, protection and a visually unique design, ARB has developed an all-new rock slider to suit the JT Gladiator. These ARB Rock Sliders are made up of both the slider assembly and a lower body mount to spread the load and protect the vulnerable lower sill area of the JT when used off road. The multi-folded slider uses chassis-mounted body mounts to spread the load along the length of the vehicle sills and not restrict breakover angle. The sliders are manufactured from multi-folded 4mm laser cut and pulse welded sheet steel. The multi-folded sheet steel provides strength without the need for thicker material to keep weight to a minimum. The profile of the slider against the body is curved to match the vehicle shape. To provide additional mounting, a sill plate is fitted with M6 nutserts and M6 button head zinc-plated Torx bolts. The plate is manufactured from 3mm laser cut and folded sheet steel and features a laser cut ARB logo at the front of the sill plate. To complement the ARB JT protection equipment range the Rock Sliders are finished in Integrit textured black powder coat.

• Vehicle-specific design to suit the Jeep Gladiator.
• Durable steel construction for maximum protection.
• Two-piece design of sill mount and slider assemblies.

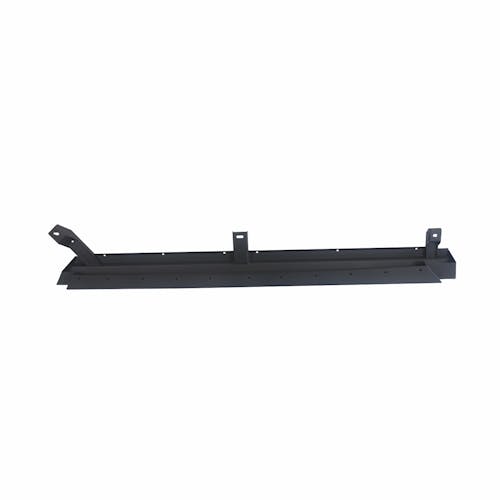

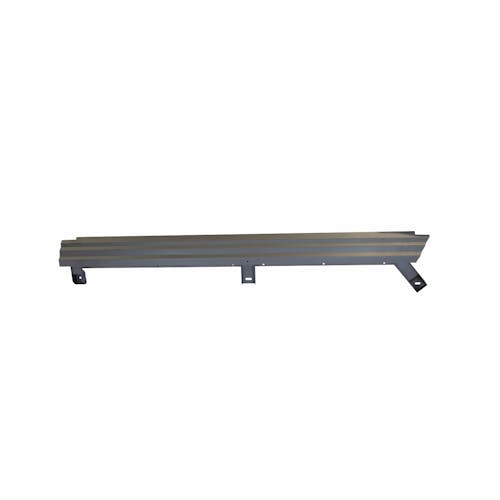

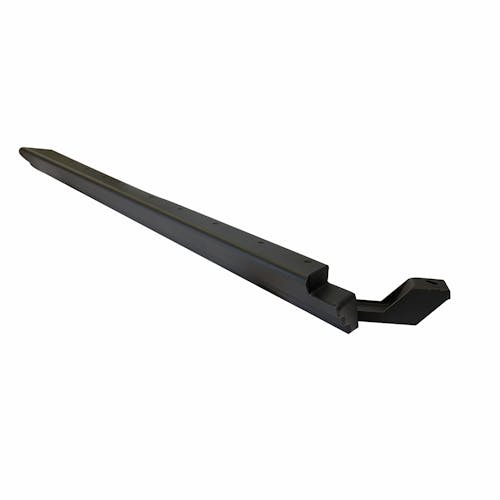

• Slider section manufactured from 4mm laser cut steel.
• Slider section mounts to chassis-mounted body mounts.

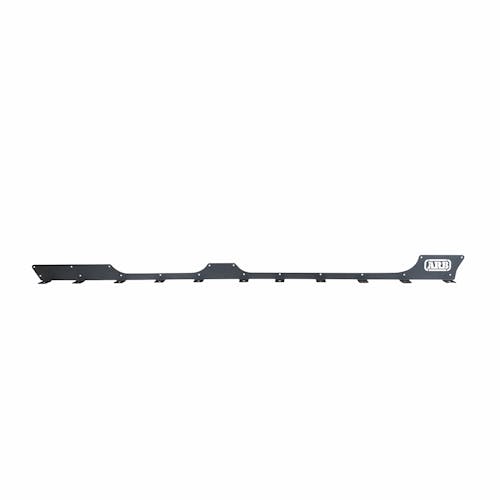

• Mounts to vehicle sill, 3mm laser cut steel.
• Sill panels mount to vehicle with M6 nutserts and M6 button head Torx bolts.
• Approximate weight of the sliders are 79lbs (pair).
• Finished in Integrit textured black powder coat.

---

Application Summary:

Year	Make/Model
2020-2023	Jeep Gladiator
