ATLAS 5 IN Aluminized Steel DPF-Back Exhaust System w/Polished Tip GM Diesel Trucks 2016 V8-6.6L (td) LML

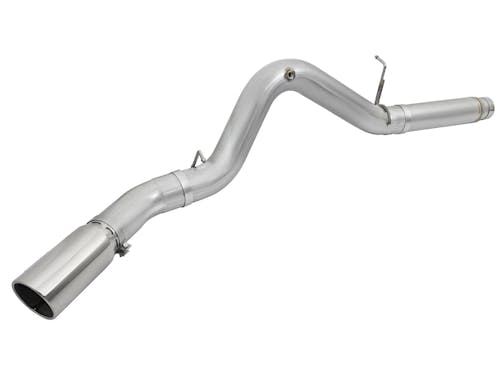

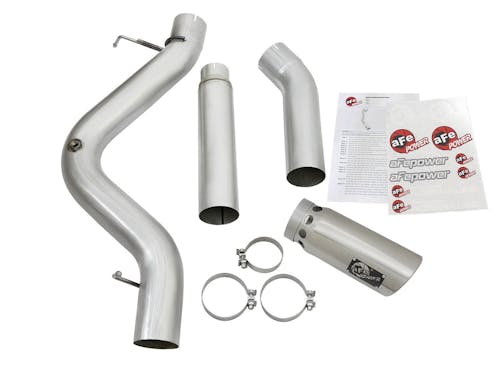

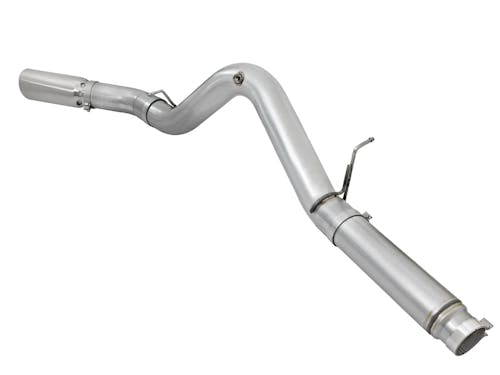

Interested in a new exhaust system for your LML Duramax? Check out the ATLAS DPF-Back exhaust system by aFe. This system is constructed from 5 mandrel-bent aluminized steel tubing and uses high quality band clamps and OE-style bayonet hangers. This unit uses all factory mounting locations to provide a quick, hassle-free installation. Also included in this exhaust system is a massive 6 diameter, polished 304 stainless steel tip with a laser-cut stainless steel aFe power badge. ATLAS exhaust systems are the perfect combination of performance, fit and value. Simple Installation: All systems use factory mounting locations providing stability and hassle-free installation. Leak-Free Seal: High quality band clamps are included for a complete 360 degree sealing surface. OE Fit: OE-style bayonet hangers are used to maintain a stable pipe location during high vibration and high heat conditions. The bayonet tip holds the hanger bushing in place for an OE style fit that does not change with time. Flow and Performance: This ATLAS exhaust system is constructed of 5 mandrel-bent aluminized steel tubing for maximum flow. Smooth transition bends allow for low turbulence, increasing horsepower, torque and lowering EGT's. 6 Diameter Polished Intercooled Tip: Finishing off the exhaust is a 6 diameter, high luster polished, stainless steel slash cut tip with intercooling vents designed to reduce exhaust gas temperatures at the tailpipe. A unique stainless steel laser-cut aFe Power logo plate is riveted on for an aggressive style.
- Mandrel Bent Tubing For Maximum Flow
- Utilizes Factory Mounting Locations
- Quick Hassle Free Installation

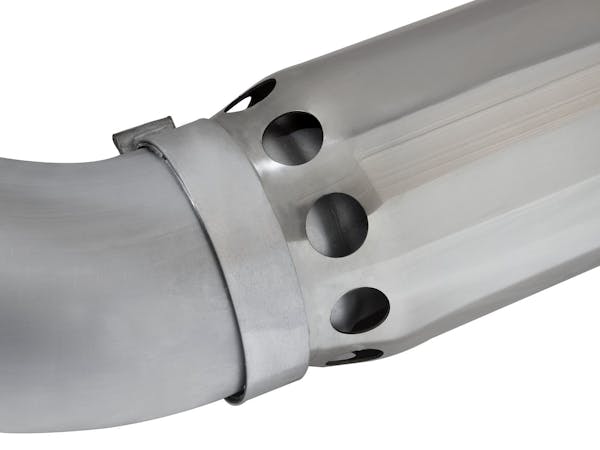

- Massive Intercooled Tip w/Laser Cut aFe Power Badge
Information:
Mandrel Bent Tubing For Maximum Flow; Utilizes Factory Mounting Locations; Quick Hassle Free Installation; Massive Intercooled Tip w/Laser Cut aFe Power Badge
Application Summary:
| Year |
Make/Model |
| 2016 |
Chevrolet Silverado 2500 HD |
| 2016 |
Chevrolet Silverado 3500 HD |
| 2016 |
GMC Sierra 2500 HD |
| 2016 |
GMC Sierra 3500 HD |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Exhaust Type |
DPF-Back |
| Exit Position |
Single Rear |
| Exit Style |
Straight |
| GTIN |
00802959492789 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
5 |
| Inlet Inside Diameter (in.) |
5 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminized Steel |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| Tail Pipe Material |
Aluminized Steel |
| Tip Diameter |
6.000 in. |
| Tip Size |
6 |
| Tubing Diameter |
5 |
| Warranty Time |
2 |
